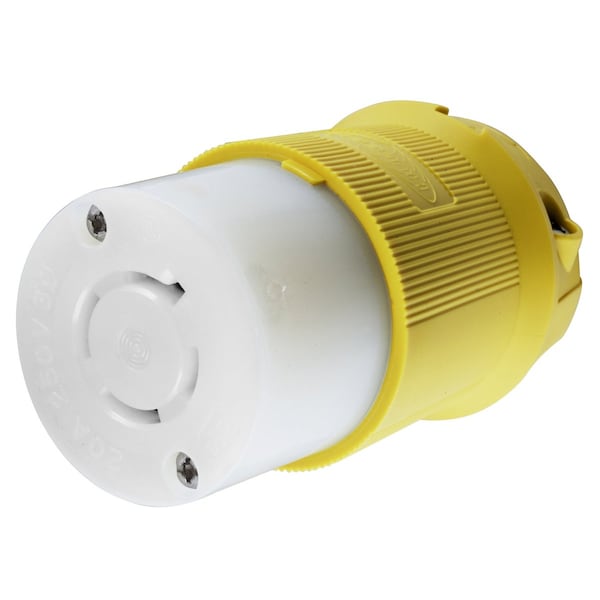

Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

Mfr # HBL24CM23
Zoro # G300702113

63.86

Key Features

NEMA Receptacle Configuration

L15-20R

Current Rating

20 A

Voltage Rating

250V AC

Phase

Three

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL24CM23
Zoro #: G300702113
UPC #: 783585038506
Country of Origin: United States

Dimensions

Length: 2.33 in
Width: 2.33 in
Height: 3.86 in
Dimensions: 2.33 in x 2.33 in x 3.86 in
Wire Size: #16 AWG to #8 AWG
For Minimum Cable Diameter: 0.35 in
For Maximum Cable Diameter: 1.15 in

Details

Item: Locking Connector
NEMA Receptacle Configuration: L15-20R
Current Rating: 20 A
Voltage Rating: 250V AC
Phase: Three
Number of Poles: 3
Number of Wires: 4
Wire Connection Type: Screw Terminals
Wiring Style: Standard
Connection Orientation: Straight
Shrouded: No
Grounding: Grounded
Housing Color: Yellow
Cap Type: No Cap
Standards: CSA C22.2 No.42, UL 498
Resistance Properties: Chemical Resistant, Impact Resistant
Special Features: Terminals identified in accordance with UL 498
Body Material: Natural White Nylon
Material: .031" (.8) Brass
IP Rating: IP20
Application: Heavy Duty Industrial
Dielectric Strength: Withstands 2,000V minimum
Flame Resistant: HB or better per UL 94 or CSA 22.2 No. 0.6
Weight: 0.4
Amperage Rating: 20 A
Cord Range: 0.350"-1.150" (9-29)
Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware: Cord Mounted
Insulation: Insulated Body
OEM Brand Name: Hubbell Wiring Device-Kellems
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Female Connector Body, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding,L15-20R, Screw Terminal, Yellow
