  6. Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

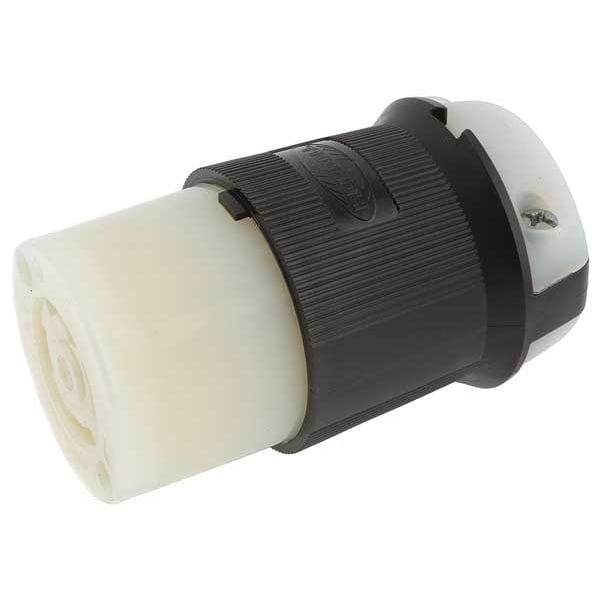

Hubbell Wiring Device-Kellems Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL2733 - main

Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2733

  • Zoro # G2053676

product price:  $112.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2733
Zoro #
G2053676
UPC #
783585039336
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
Overall Length
2.33 in
For Minimum Cable Diameter
0.35 in
Minimum Wire Size
16 AWG
For Maximum Cable Diameter
1.15 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Boot Code
C
IP Rating
IP20
Material
Nylon
Body Material
Natural White Nylon
Flange Material
Nylon
Special Features
Terminals identified in accordance with UL 498
Power Indicating Light
No
UL 94 Flammability Rating
HB
Midget Locking
No
Contact Material
Brass
Market
Industrial
For Location
Indoor
Horsepower Rating
10 hp
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Weight
3.05
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Twist-Lock Connector (L16-30R) is a locking connector intended for use in industrial and commercial electrical applications utilizing twist-lock connections. It features a ribbed nylon housing.


Key Features of the HUBBELL - 30A Twist-Lock Connector:

  • Body/Housing Material: Nylon construction.

  • Cord Size Compatibility: Accepts cords from 0.350 in to 1.150 in diameter.

  • Contact Material: Brass contacts.

  • Voltage/Current Rating: Rated for 480V AC and 30 amps; maximum horsepower rating: 10 hp.

  • Wire Accommodation: Accommodates wire sizes from 16 AWG to 8 AWG with screw terminals.

  • NEMA Configuration: L16-30R; three-pole, four-wire design with grounding feature.

  • Operating Temperature Range: Operating temperature range: -40°C to +75°C max.

  • Flame Resistance & Dielectric Strength: UL94 HB flammability rated; dielectric strength: minimum 2,000V.

  • Ingress Protection & Location Suitability: IP20 rated; suitable for indoor use only in dry locations.

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 compliant connectors with terminals identified per UL498 requirements.
