  6. Flanged Locking Inlet, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White

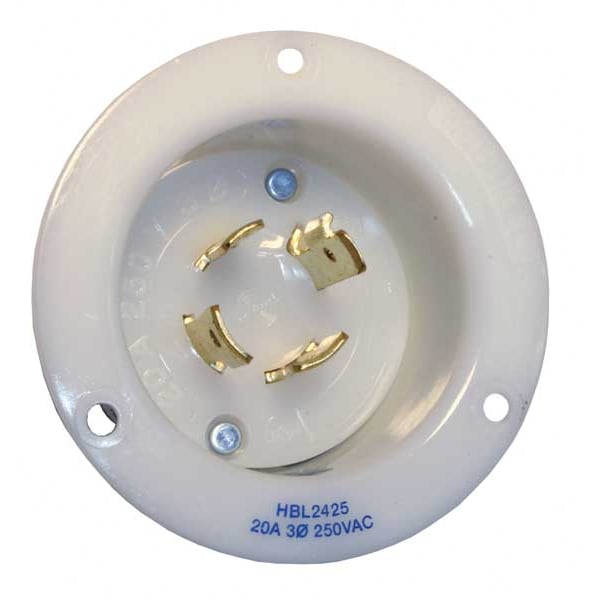

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White HBL2425 - main

Flanged Locking Inlet, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2425

  • Zoro # G2110981

product price:  $39.15
/ea

Key Features

NEMA Receptacle Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2425
Zoro #
G2110981
UPC #
783585038247
Country of Origin
United States

Dimensions

Face Diameter
2.23 in
Overall Depth
2.27 in
Minimum Wire Size
16 AWG
Face Plate Width
0.09 in
Flange Diameter
3.06 in
Maximum Wire Size
8 AWG
Wire Size
#12 AWG; #16 AWG - #8 AWG solid or stranded copper wire only.
Dimensions
3.06 in x 3.06 in x 2.27 in
Height
2.27 in
Length
3.06 in
Width
3.06 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Wiring Style
Standard
Special Features
With Cover
Boot Code
E
Grade
General Use
Material
Thermoplastic Elastomer
Mounting Type
Flush Mount
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Housing Material
Nylon
For Location
Indoor
Market
Industrial
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
NEMA Plug Configuration
L15-20P
NEMA Enclosure Rating
12, 4X
Flange Material
Steel
For Environment
Dry
Horsepower Rating
3 hp
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Blade Material
Brass
Number of Blades
4
Shrouded
No
Includes
Mounting Screws
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Application
Extra Heavy Duty Industrial
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
NEMA Configuration
L15-20
Amps
20
NEMA Rating
12, 4X

Description

Flanged Locking Inlet, Current Rating 20 A, Flange Material Steel, Housing Color White, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration L15-20P, Number of Blades 4, Number of Poles 3, Phase Three, Voltage Rating 250V AC, Wiring Style Standard, Face Diameter 2.23 in, Flange Diameter 3.06 in, Flange Type Flanged, Grounding Grounded, Horsepower Rating 3 hp, Housing Material Nylon, Includes Mounting Hardware Yes, Maximum Wire Size 8 AWG
