  11. Locking Connector, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

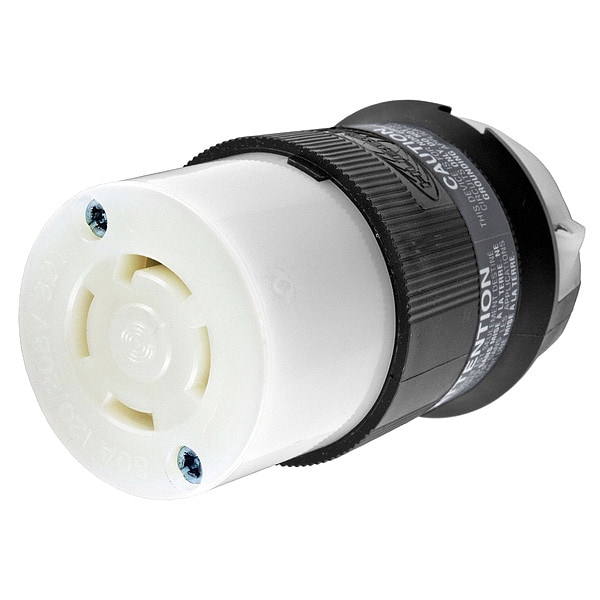

Hubbell Wiring Device-Kellems Locking Connector, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2753 - main

Locking Connector, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2753

  • Zoro # G1551873

product price: $116.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L18-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2753
Zoro #
G1551873
UPC #
783585039442
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
For Maximum Cable Diameter
1.15 in
Outside Diameter
2.33 in
Minimum Wire Size
16 AWG
Overall Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Width
2.33 in
Height
3.86 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L18-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
IP Rating
IP20
Boot Code
C
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Horsepower Rating
3 hp
UL 94 Flammability Rating
HB
Housing Material
Nylon
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Contact Material
Brass
For Location
Indoor
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
For Environment
Dry
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Cord Range
0.350"-1.150" (9-29)
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Amperage Rating
30 A
Application
Heavy Duty Industrial
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Twist-Lock Connector L18-30R is a heavy-duty industrial locking connector suitable for use in indoor, dry locations. It features a ribbed nylon housing provides grip; resistant to impact and certain chemicals, with a clear, funnel-shaped wire entry that facilitates wiring. The connector accommodates four poles and four wires, operates at 120/208V AC three-phase power, and is rated for 30 amps of current.


Key Features of the HUBBELL 30A Twist-Lock Connector L18-30R:

  • Amperage/Voltage: Rated for 30 A at 120/208V AC (three-phase)

  • NEMA Configuration: L18-30R

  • Cable Range: Accepts cable diameters from 0.350" to 1.150"

  • Wire Size Compatibility: #16 AWG to #8 AWG stranded copper wire

  • Nylon body is resistant to certain chemicals and impacts

  • Cord Grip Design: Designed to reduce strain on terminations during use

  • Wire Entry: Funnel-shaped entry assists with the wiring process

  • Dust Shield: Integral shield reduces ingress of dust or contaminants into the wiring chamber

  • Temperature Rating: Operates continuously up to 75°C; minimum -40°C without impact

  • Flame Resistance: Meets HB or better per UL94 or CSA standards

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed
