  11. Locking Connector, L20-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

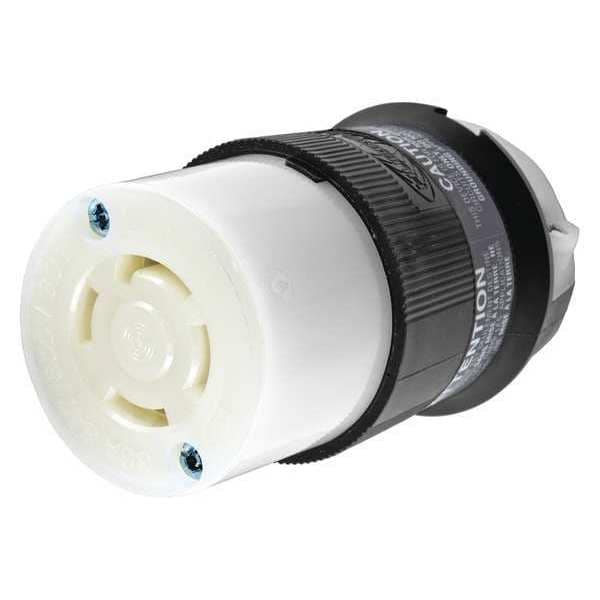

Hubbell Wiring Device-Kellems Locking Connector, L20-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2773 - main

Locking Connector, L20-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2773

  • Zoro # G0574878

product price: $120.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L20-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2773
Zoro #
G0574878
UPC #
783585039527
Country of Origin
United States

Dimensions

Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
Minimum Wire Size
16 AWG
Overall Length
2.33 in
For Maximum Cable Diameter
1.15 in
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Height
3.86 in
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L20-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No.42, UL 498, W-C-596
Resistance Properties
Chemical Resistant, Impact Resistant
Special Features
Terminals identified in accordance with UL 498
IP Rating
IP20
Grade
Federal Specification
Body Material
Natural White Nylon
Material
.031" (.8) Brass
Horsepower Rating
3 hp
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
Midget Locking
No
For Environment
Dry
Market
Industrial
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Range
0.350"-1.150" (9-29)
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Amperage Rating
30 A
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
