Shop HUBBELL WIRING DEVICE-KELLEMS

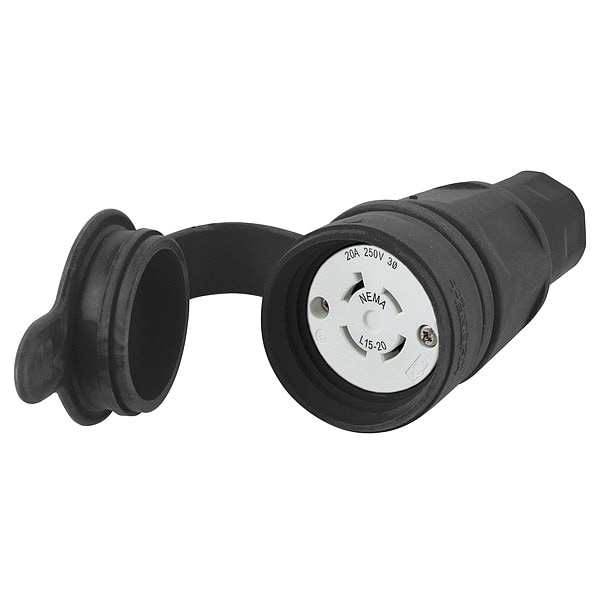

Watertight Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL27W75BK

  • Zoro # G0069688

product price:  $102.47
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL27W75BK
Zoro #
G0069688
UPC #
783585456379
Country of Origin
Multiple

Dimensions

Cord Size
0.325 in to 0.875 in
Overall Length
2.51 in
Outside Diameter
2.51 in
Maximum Wire Size
10 AWG
For Minimum Cable Diameter
0.375 in
Minimum Wire Size
18 AWG
For Maximum Cable Diameter
0.875 in
Length
2.51 in
Width
2.51 in
Height
5.69 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Dimensions
2.51 in x 2.51 in x 5.69 in
Wire Rope Length
2.51 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Cap Type
Press-On Cap
Standards
ANSI, NEMA WD-1, WD-6
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Grade
Industrial/Commercial
IP Rating
IP69K
Material
Thermoplastic Elastomer, Valox
Housing Material
Thermoplastic Elastomer
Market
Industrial
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Power Indicating Light
No
UL 94 Flammability Rating
HB
Midget Locking
No
Horsepower Rating
3 hp
Minimum Operating Temperature
-40 Degrees F
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Amperage Rating
20 A
NEMA Rating
4, 4X, 6, 6P
Antimicrobial
No
Power Indicator
No
Power and Ground Indicating Light
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Thermoplastic Elastomer, IP Rating IP69K, NEMA Receptacle Configuration L15-20R, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type Press-On Cap, Contact Material Nickel-Plated Brass
