  11. Locking Connector, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

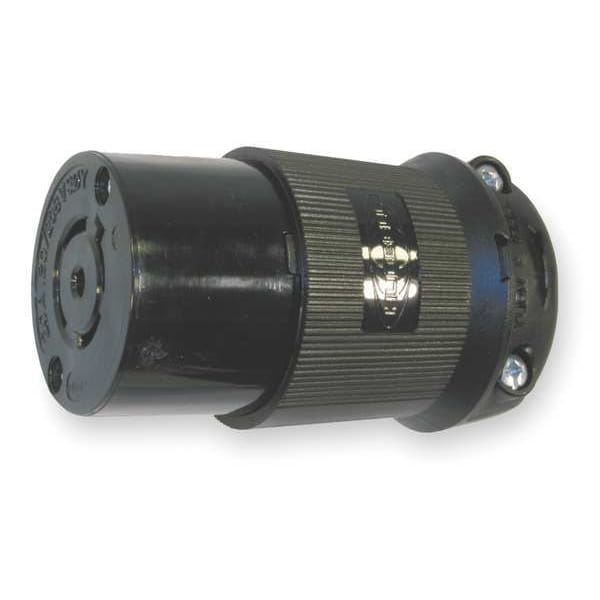

Hubbell Wiring Device-Kellems Locking Connector, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black HBL2513BK - main

Locking Connector, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

  • Mfr # HBL2513BK

  • Zoro # G3427961

product price: $87.35
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2513BK
Zoro #
G3427961
UPC #
783585172279
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Overall Length
3.86 in
Minimum Wire Size
16 AWG
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
Width
2.33 in
Wire Size
#16 AWG to #8 AWG
Dimensions
3.86 in x 2.33 in x 2.33 in
Height
2.33 in
Length
3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified C22.2 No.42, Fed.Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Material
Nylon
Grade
Industrial
Boot Code
C
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Horsepower Rating
2 hp
UL 94 Flammability Rating
HB
Market
Industrial
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
For Location
Indoor
For Environment
Dry
Midget Locking
No
Maximum Operating Temperature
75 Degrees C
Power Indicating Light
No
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
2,000V minimum
Weight
0.35
Insulation
Insulated Body
Application
Heavy Duty Industrial
Cord Range
0.350"-1.150" (9-29)
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
20 A
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Power Indicator
No
Antimicrobial
No

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants.
