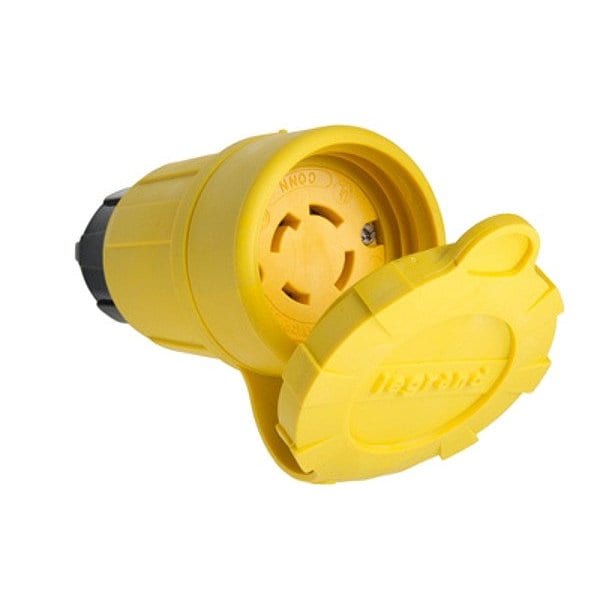

Shop LEGRAND

TURNLOK

  • Mfr # 29W76

  • Zoro # G122784991

product price:
$
138.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Housing Color
Yellow
NEMA Receptacle Configuration
L16-30R
Midget Locking
No
Number of Wires
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29W76
Zoro #
G122784991
UPC #
785007033007
Country of Origin
United States
Housing Material
Thermoplastic
Housing Color
Yellow
NEMA Receptacle Configuration
L16-30R
Midget Locking
No
Number of Wires
4
Grade
General Use
IP Rating
IP67
Shrouded
No
Resistance Properties
Watertight
Standards
CSA Listed, UL Listed
Maximum Operating Temperature
140 Degrees F
Features
Color-Coded Sealing Bushings Provided for Large Range of Cord Diameters, Devices Resist High-Pressure Hose Down of 1,500 PSI, Large Ribs on Body for a Superior Grip When Mating
Item
Locking Connector
Current Rating
30 A
Market
Industrial
Series
TURNLOK(R)
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-0
NEMA Enclosure Rating
4, 4X, 6, 6P
Connection Orientation
Straight
Voltage Rating
480V AC
Power and Ground Indicating Light
No
For Location
Indoor, Outdoor
Phase
Three
Minimum Operating Temperature
-40 Degrees F

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic, IP Rating IP67, NEMA Receptacle Configuration L16-30R, Number of Wires 4, Phase Three, Resistance Properties Watertight, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.64 in, Grade General Use, Horsepower Rating Not Applicable, Market Industrial
