Shop HUBBELL WIRING DEVICE-KELLEMS

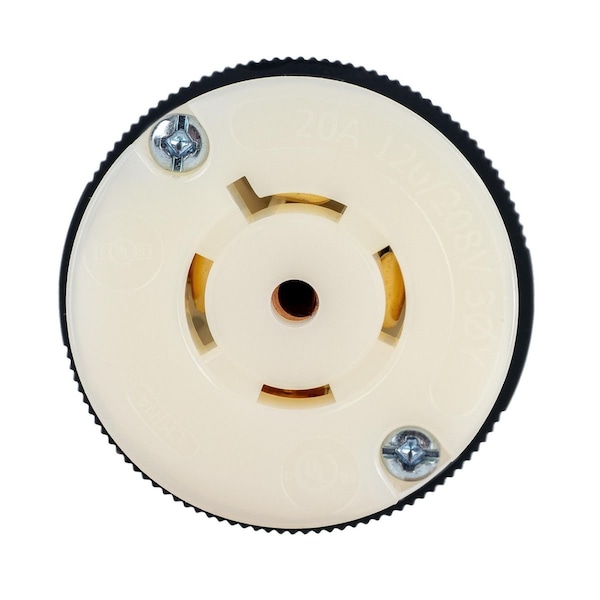

Locking Connector, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Spring Clamp Terminals

  • Mfr # HBL2513ST

  • Zoro # G206170818

product price:
$
74.93
/ea

Key Features

NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2513ST
Zoro #
G206170818
UPC #
783585719122
Country of Origin
China

Dimensions

Overall Length
2.33 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Face Diameter
2.21 in
Wire Rope Length
2.33 in
Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Federal Specification
IP Rating
IP20
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Midget Locking
No
For Location
Indoor
UL 94 Flammability Rating
HB
Horsepower Rating
2 hp
Market
Industrial
For Environment
Dry

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Superior cord grip design protects terminations from excess strain
