  11. Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

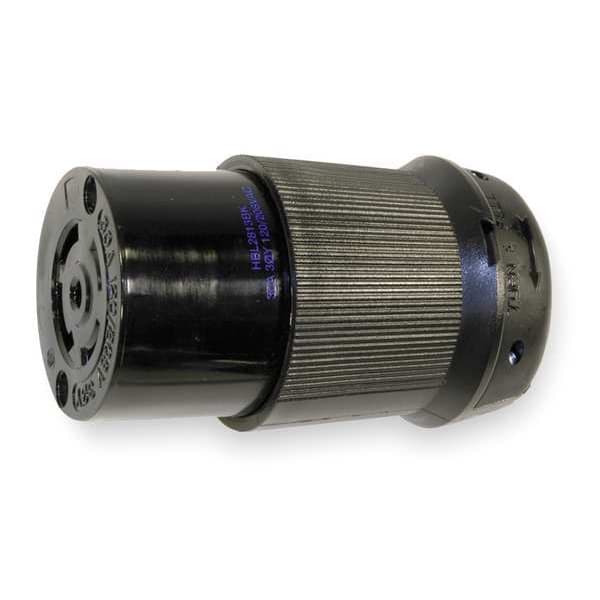

Hubbell Wiring Device-Kellems Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black HBL2813BK - main

Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

  • Mfr # HBL2813BK

  • Zoro # G2208071

product price: $105.23
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2813BK
Zoro #
G2208071
UPC #
783585172293
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
Overall Length
2.33 in
Minimum Wire Size
16 AWG
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Height
3.86 in
Length
2.33 in
Wire Size
#16 AWG to #8 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No.42, Fed.Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Boot Code
C
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
Contact Material
Brass
Housing Material
Nylon
Horsepower Rating
3 hp
Midget Locking
No
Power Indicating Light
No
For Environment
Dry
Market
Industrial
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.4
Dielectric Strength
2,000V minimum
Amperage Rating
30 A
Performance
Electrical-Current Interrupting - Certified at full rated current Electrical - Dielectric Voltage - 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Cord Range
0.350"-1.150" (9-29)
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Antimicrobial
No
Power Indicator
No

Description

• All black ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants.
