  11. Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

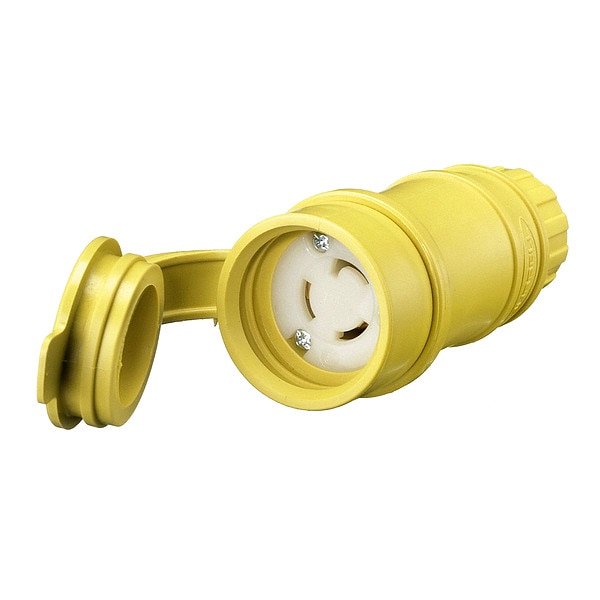

Hubbell Wiring Device-Kellems Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL25W47 - main

Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL25W47

  • Zoro # G2601042

product price: $42.29
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL25W47
Zoro #
G2601042
UPC #
783585235912
Country of Origin
United States

Dimensions

Cord Size
0.300 in to 0.655 in
Outside Diameter
1.76 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Overall Length
1.76 in
For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.30 in
Length
1.76 in
Height
4.03 in
Dimensions
1.76 in x 1.76 in x 4.03 in
Wire Size
#18 AWG to #10 AWG
Width
1.76 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant, Watertight
IP Rating
IP20
Grade
Industrial
Material
Elastomer
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Midget Locking
No
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Weight
0.35
Dielectric Strength
Withstand 2,000V minimum
Flame Resistant
HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating
15 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG- #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Application
Heavy Duty Industrial
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Cord Range
0.300"-.655"(7.6-16.6)
Material - Mounting Hardware
Cord Mounted
Antimicrobial
No
Power Indicator
No

Description

• Integral weatherproofing shroud seals connection between plug and connector
• Nylon compression nut keeps water and dust from getting into the body around the cord
