  11. Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

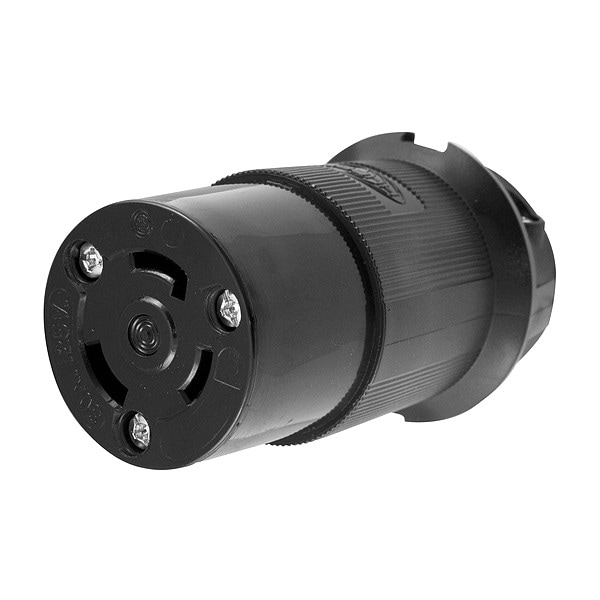

Hubbell Wiring Device-Kellems Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2613BK - main

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2613BK

  • Zoro # G1546167

product price: $79.49
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2613BK
Zoro #
G1546167
UPC #
783585172217
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Overall Length
2.26 in
Maximum Wire Size
8 AWG
Outside Diameter
2.26 in
Minimum Wire Size
16 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
Height
3.86 in
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No.42, Fed. Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Boot Code
B
Material
Nylon
Special Features
Terminals identified in accordance with UL 498
Body Material
Natural White Nylon
Horsepower Rating
1 hp
Midget Locking
No
UL 94 Flammability Rating
HB
For Location
Indoor
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Contact Material
Brass
Housing Material
Nylon
For Environment
Dry
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Weight
0.3
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Insulation
Insulated Body
Cord Range
0.360"-0.930" (9-24)
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Locking Connector L5-30R is an industrial locking connector intended for electrical connections in indoor, dry environments. It features a two-pole, three-wire configuration and is rated for 30 amps at 125V AC. The connector includes a cord grip design helps reduce strain on terminations, as well as a clear, funnel-shaped wire entry to facilitate wiring. An integral dust shield includes a dust shield helps prevent contaminants from entering the wiring chamber.


Key Features of the HUBBELL 30A Locking Connector L5-30R:

  • Amperage/Voltage Rating: Rated for 30 A and 125V AC with single-phase operation

  • NEMA Configuration: L5-30R locking receptacle

  • Cable Range: Accepts cable diameters from 0.360" to 0.930"

  • Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire

  • Body Material: Constructed of natural white nylon housing with brass contacts; constructed of natural white nylon housing with brass contacts

  • Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use

  • Screw Terminals: Standard screw terminal connections identified per UL 498 requirements

  • Flammability & Safety Standards: Meets HB or better flammability rating per UL94; certified to CSA C22.2 No.42, Fed.Spec W-C-596, and listed to UL498 standards

  • Ingress Protection: IP20 rated for indoor use only unless additional protection is provided
