  6. Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

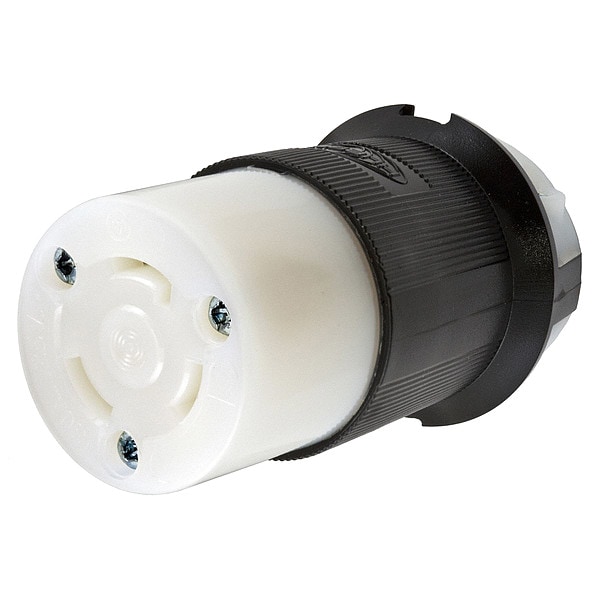

Hubbell Wiring Device-Kellems Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2613 - main

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2613

  • Zoro # G1866724

product price:  $78.59
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2613
Zoro #
G1866724
UPC #
783585038766
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Overall Length
2.26 in
Width
2.26 in
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Height
3.86 in
Dimensions
2.26 in x 2.26 in x 3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Resistance Properties
Impact Resistant
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Grade
Industrial
Boot Code
B
Material
Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Horsepower Rating
1 hp
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
For Environment
Dry
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Midget Locking
No
UL 94 Flammability Rating
HB
Contact Material
Brass
Market
Industrial
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.3
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Cord Range
0.360"-0.930" (9-24)
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Twist-Lock Connector (L5-30R) is a locking connector suitable for use in industrial and commercial electrical applications. It features a two-pole, three-wire configuration rated for 30 amps at 125V AC, with a straight connection orientation and screw terminal wiring style. The body is constructed from nylon; intended for indoor dry locations.


Key Features of the HUBBELL 30A Twist-Lock Connector:

  • Cord Grip Design: Designed to reduce strain on terminations.

  • Wire Entry: Funnel-shaped entry assists with wire termination.

  • Dust Shield: Integral shield provides a barrier against dust or contaminants entering the wiring chamber.

  • Cable Range: Accepts cord diameters from 0.360 in to 0.930 in; accommodates #16 AWG to #8 AWG stranded copper wire only.

  • Material Construction: Housing made of natural white nylon with brass contacts; insulated body design enhances durability and performance.

  • Electrical Ratings: Rated for up to 30 A at 125V AC; withstands dielectric voltage of minimum 2,000V; maximum continuous operating temperature of 75°C, minimum -40°C without impact.

  • NEMA Configuration: L5-30R receptacle type with grounded design and standard wiring style.

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 standards.
