  11. Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

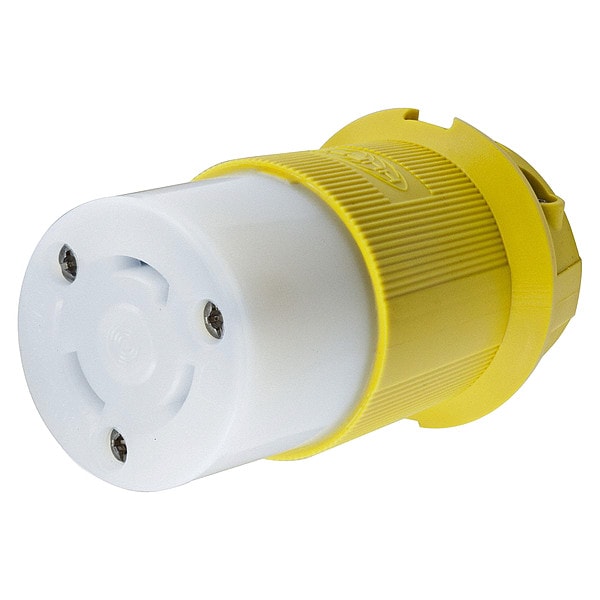

Hubbell Wiring Device-Kellems Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL26CM13 - main

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL26CM13

  • Zoro # G3248366

product price: $71.62
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL26CM13
Zoro #
G3248366
UPC #
783585039091
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.325 in to 0.930 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Length
2.26 in
Height
3.86 in
Width
2.26 in
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Dimensions
2.26 in x 2.26 in x 3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Grade
Marine
Special Features
Corrosion resistant
Boot Code
B
Material
Nylon
Body Material
Natural White Nylon
Housing Material
Nylon
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Midget Locking
No
Contact Material
Nickel-Plated Brass
Market
Industrial
Power Indicating Light
No
UL 94 Flammability Rating
HB
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Insulation
Insulated Body
Material - Mounting Hardware
Cord Mounted
Cord Range
0.360"-0.930" (9-24)
Application
Heavy Duty Industrial/Marine
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Marine Twist-Lock Connector (L5-30R) is a locking connector designed for heavy-duty industrial and marine electrical applications. It features a ribbed nylon housing for grip and chemical resistance. The connector accommodates cables ranging from 0.36 to 0.93 inches in diameter and supports wire sizes from #16 AWG to #8 AWG stranded copper wire.


Key Features of the HUBBELL 30A Marine Twist-Lock Connector:

  • Amperage/Voltage Rating: Rated for 30 A at 125V AC with single-phase power

  • NEMA Configuration: L5-30R twist-lock design with 2 poles and 3 wires

  • Body Material: Constructed from natural white nylon; yellow housing color

  • Cable Range: Accepts cable diameters between 0.36" and 0.93"

  • Contact Material: Nickel-plated brass contacts

  • Cord Mounted Design: Suitable for cord mounting installations

  • Corrosion & Chemical Resistance: Suitable for use in marine environments as specified by the manufacturer

  • Flame Resistance: Meets UL94 HB or CSA flame resistance standards

  • Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation (without impact)

  • Screw Terminals: Standard wiring style using screw terminals; insulated body construction

  • Dielectric Strength & Performance Ratings: Rated dielectric voltage of 2,000V; rated current interrupting at full rated current

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, Listed to UL498
