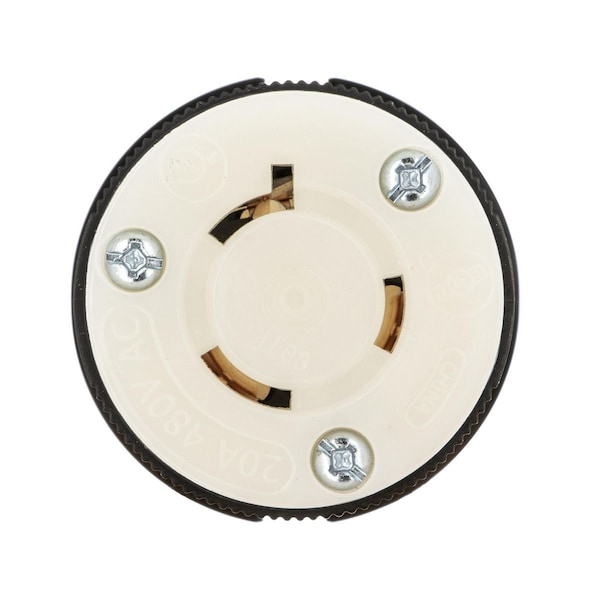

Locking Connector, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Spring Clamp Terminals
Mfr # HBL2343ST
Zoro # G306171180
product price: $42.39
/eaKey Features
NEMA Receptacle Configuration
L8-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL2343ST
Zoro #
G306171180
UPC #
783585719306
Country of Origin
China
Dimensions
For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Minimum Wire Size
16 AWG
Outside Diameter
2.26 in
Overall Length
4.12 in
Maximum Wire Size
8 AWG
Description
Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L8-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Copper, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.36 in
