  11. Locking Connector, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

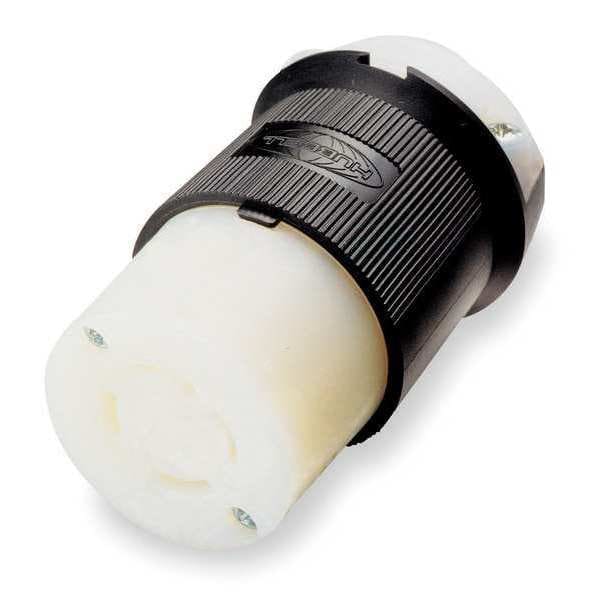

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals HBL7565C - main

Locking Connector, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # HBL7565C

  • Zoro # G1563572

product price: $46.69
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7565C
Zoro #
G1563572
UPC #
783585178608
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
For Minimum Cable Diameter
0.23 in
Overall Length
1.53 in
Maximum Wire Size
10 AWG
For Maximum Cable Diameter
0.72 in
Outside Diameter
1.527 in
Minimum Wire Size
18 AWG
Dimensions
1.53 in x 1.53 in x 2.78 in
Width
1.53 in
Length
1.53 in
Wire Size
#18 AWG to #10 AWG
Height
2.78 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Material
Nylon
Grade
Industrial
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Midget Locking
No
Housing Material
Nylon
Contact Material
Brass
For Environment
Dry
Power Indicating Light
No
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.2
Dielectric Strength
2,000V minimum
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
10/15 A
Insulation
Insulated Body
Cord Range
0.230"-0.720"(5.8-18.3)
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Application
Heavy Duty Industrial
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 15/10A Twist-Lock Connector is a locking connector suitable for use in industrial and commercial electrical applications. It features a ribbed nylon housing that offers impact and chemical resistance, with an integral VARI-SIZE insert to accommodate a wide range of cord diameters. This connector supports 3 poles and 3 wires, operates at 125/250V AC, and uses screw terminals for wire connection.


Key Features of the HUBBELL 15/10A Twist-Lock Connector:

  • Amperage Rating: Rated for use at either 10 or 15 amps

  • Cord Accommodation: Accepts cords from 0.230 in to 0.720 in diameter (#18 AWG to #10 AWG stranded copper wire)

  • Body Material: Ribbed nylon housing

  • Contact Material: Brass contacts

  • Flame Resistance: Meets HB or better per UL94 flammability standards

  • Temperature Range: Operates continuously between -40°C (without impact) up to +75°C

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498

  • Chemical & Impact Resistant Housing: Designed for demanding environments where these properties are required

  • Screw Terminal Connections: Standard wiring style with terminal identification per UL requirements (X, Y, Z, White, Green)
