Shop LEGRAND

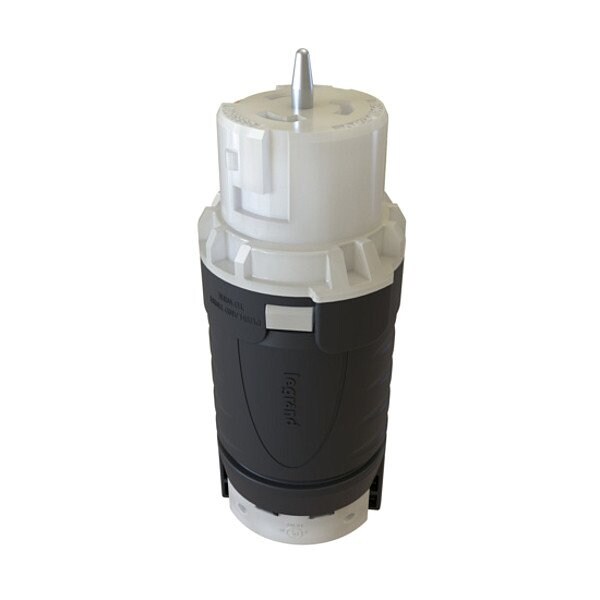

TURNLOK

  • Mfr # CS8364C

  • Zoro # G122784816

product price:
$
172.99
/ea
Free Shipping & Returns

Key Features

Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Number of Poles
3
Features
Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise and Provide Excellent Conductivity, Newly Designed External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Visible Molded NEMA Configuration and Device Rating
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8364C
Zoro #
G122784816
UPC #
785007442496
Country of Origin
Mexico

Dimensions

For Minimum Cable Diameter
0.7 in
Maximum Wire Size
4 AWG
For Maximum Cable Diameter
1.2 in
Minimum Wire Size
8 AWG

Details

Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Number of Poles
3
Features
Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise and Provide Excellent Conductivity, Newly Designed External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Visible Molded NEMA Configuration and Device Rating
Maximum Operating Temperature
167 Degrees F
NEMA Receptacle Configuration
Non-NEMA
Voltage Rating
250V AC
Number of Wires
4
Power and Ground Indicating Light
No
Housing Color
Black
Series
TURNLOK(R)
Grade
General Use
Item
Locking Connector
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
Phase
Three
Housing Material
Nylon
Connection Orientation
Straight
Current Rating
50 A
Standards
cULus File No.E146159, RoHS, UL 498
Resistance Properties
Corrosion Resistant
Shrouded
Yes
Midget Locking
No
IP Rating
Not Rated
Market
Commercial, Industrial

Description

Locking Connector, Connection Orientation Straight, Current Rating 50 A, Housing Color Black, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, For Maximum Cable Diameter 1.2 in, For Minimum Cable Diameter 0.7 in, Grade General Use
