Shop HUBBELL WIRING DEVICE-KELLEMS

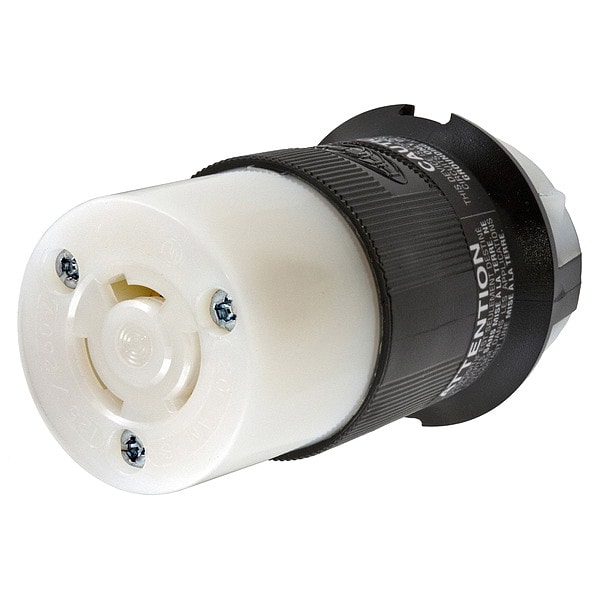

Locking Connector, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL7314C

  • Zoro # G0834486

product price:  $51.99
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7314C
Zoro #
G0834486
UPC #
783585037509
Country of Origin
United States

Dimensions

Cord Size
0.325 in to 0.930 in
Minimum Wire Size
16 AWG
Overall Length
2.26 in
For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Maximum Wire Size
8 AWG
Wire Size
#16 AWG to #8 AWG
Height
3.86 in
Dimensions
2.26 in x 2.26 in x 3.86 in
Width
2.26 in
Length
2.26 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Listed, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial/Commercial
IP Rating
IP20
Material
Nylon
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498
Midget Locking
No
Market
Industrial
Contact Material
Brass
Housing Material
Nylon
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Power Indicating Light
No
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Weight
0.3
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6.
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Cord Range
0.360"-0.930" (9-24)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating
20 A
Antimicrobial
No
Power Indicator
No
Power and Ground Indicating Light
No

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
