Shop HUBBELL WIRING DEVICE-KELLEMS

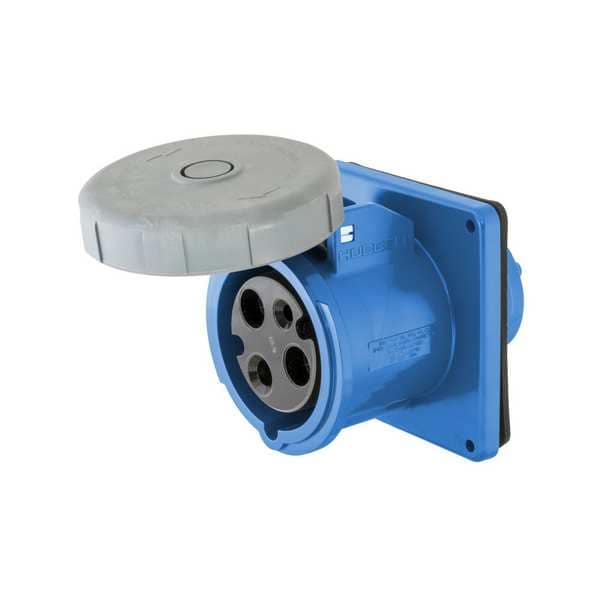

Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

  • Mfr # HBL360R6W

  • Zoro # G1624962

product price:
$
407.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL360R6W
Zoro #
G1624962
UPC #
783585403861
Country of Origin
United States
Item
Watertight Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Switch Rated
No
Features
Color Coded
Material
Thermoplastic
Market
Industrial
Housing Material Grade
Zytel 101
Connection Orientation
Straight
Shrouded
Yes
Reverse Service
No
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
3 hp
Flange Type
Flanged
Power Indicating Light
No
Number of Gangs
1
Housing Material
Thermoplastic
Retainer Material
High-Impact Thermoset
Flammability
UL 94 HB or Better
Dielectric Strength
3000V AC
Service
Standard
Product Type
Watertight IEC Device
Weight
2.4 lb
Gasket Material
Neoprene
Flange Material
Zytel 101 Nylon
Screw Material
300 Stainless Steel
Temp. Rise
30°C
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Wattage
15000
Style
Standard Service
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Material - Mounting Hardware
Screw Mounting
Series
HBL Heavy Duty
Industry Standard(s)
Listed To Standard UL1682
OEM Brand Name
Hubbell Wiring Device-Kellems
Connection Type
Screw Terminals
Grounding
Grounded
UL 94 Flammability Rating
HB

Description

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device suitable for use in applications requiring up to 60A and 250V AC single-phase power in industrial environments. Rated for 60A and 250V AC, this single-phase receptacle features a flanged design with screw terminal connections, supporting wire sizes from #8 AWG to #2 AWG. Its construction utilizes Zytel 101 nylon and thermoplastic materials, providing impact resistance and moisture protection, as specified by the manufacturer.


Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 60 amps at 250V AC single phase

  • Watertight Construction: IP67 ingress protection rating; includes neoprene gasket material

  • Body Material: Zytel 101 nylon construction

  • Cord Size Compatibility: Accepts wire sizes from #8 AWG to #2 AWG

  • Connection Type: Pressure terminal screws provide secure connectivity

  • Flange Type: Flanged mounting with screw hardware included

  • Operating Temperature Range: -40°C to 75°C (continuous operation, non-impact conditions)

  • Number of Poles/Wires: Two poles, three wires; grounded per IEC standards

  • Coded Housing Color: Blue housing per IEC convention
