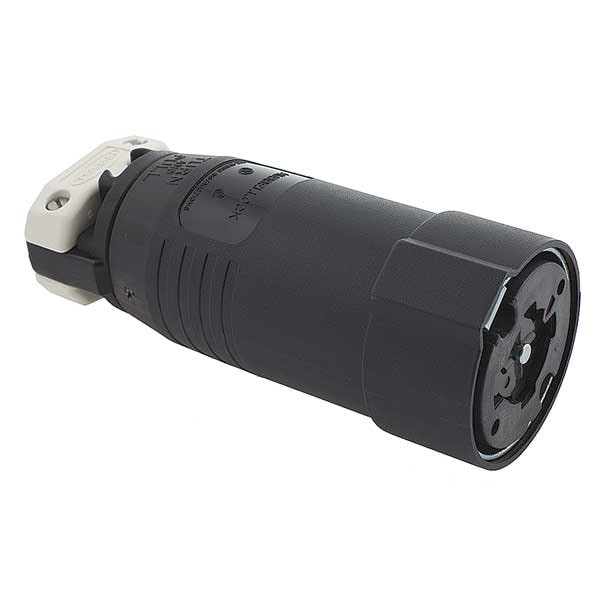

Locking Connector, Non-NEMA, 20/30 A, 250V DC/600V AC, Three Phase, 4 Pole, Screw Terminals
Mfr # HBL25414B
Zoro # G1214622
product price: $332.10
/ea
Free Shipping & Returns
Key Features
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20/30 A
Voltage Rating
250V DC/600V AC
Phase
Three
Number of Poles
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL25414B
Zoro #
G1214622
UPC #
783585017471
Country of Origin
United States
Dimensions
For Maximum Cable Diameter
1.20 in
For Minimum Cable Diameter
0.70 in
Cord Size
0.630 in to 1.200 in
Maximum Wire Size
6 AWG
Outside Diameter
2.688 in
Overall Length
6.78 in
Minimum Wire Size
10 AWG
Length
6.78 in
Height
2.69 in
Width
2.69 in
Dimensions
6.78 in x 2.69 in x 2.69 in
Wire Size
#10 AWG to #6 AWG
Description
The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
• Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
• Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
