Shop HUBBELL WIRING DEVICE-KELLEMS

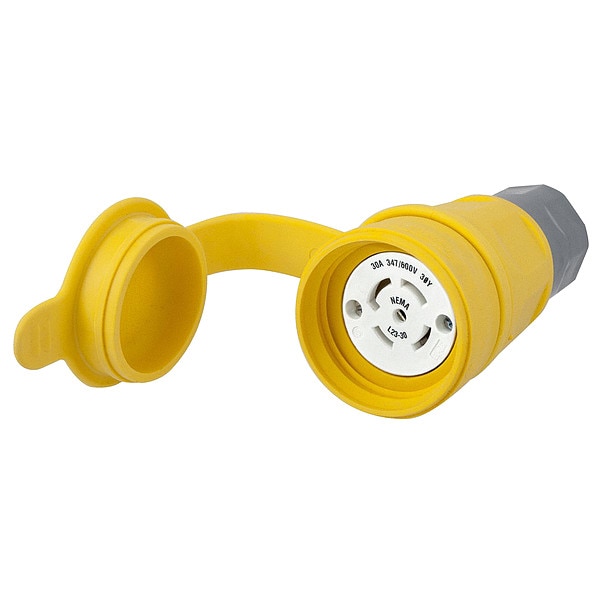

Watertight Locking Connector, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals

  • Mfr # HBL29W83

  • Zoro # G9990382

product price:  $163.35
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L23-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL29W83
Zoro #
G9990382
UPC #
783585131955
Country of Origin
Multiple

Dimensions

Cord Size
0.375 in to 1.125 in
Overall Length
2.77 in
Outside Diameter
2.77 in
Minimum Wire Size
18 AWG
For Minimum Cable Diameter
0.375 in
For Maximum Cable Diameter
1 in
Maximum Wire Size
8 AWG
Height
5.67 in
Width
2.77 in
Length
2.77 in
Dimensions
2.77 in x 2.77 in x 5.67 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L23-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
IP Rating
IP69K
Grade
Industrial/Commercial
Special Features
Corrosion resistant
Material
Thermoplastic Elastomer, Valox
Body Material
Thermoplastic Elastomer
Power Indicating Light
No
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
Contact Material
Nickel-Plated Brass
Midget Locking
No
Market
Industrial
Dielectric Strength
3500V AC
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Antimicrobial
No
NEMA Rating
4, 4X, 6, 6P
Power Indicator
No
Power and Ground Indicating Light
No

Description

The HUBBELL 30A Watertight Locking Connector L23-30R is a four-pole, five-wire connector suitable for use in industrial and commercial electrical applications where watertight properties are specified. Rated for 347/600V AC and 30 amps, this connector features a thermoplastic elastomer body with a smooth surface finish. It is equipped with stainless steel hardware and nickel-plated brass contacts.


Key Features of the HUBBELL 30A Watertight Locking Connector L23-30R:

  • Body Material: Thermoplastic elastomer housing; rated for exposure to moisture, UV, and certain chemicals as per manufacturer specifications.

  • Cord Accommodation: Accepts cord diameters from 0.375 in to 1.125 in; suitable for wire sizes ranging from 18 AWG to 8 AWG.

  • NEMA Enclosure Rating: Rated NEMA Types 4, 4X, 6, 6P, and 12; IP69K rated.

  • Contact Material: Nickel-plated brass contacts.

  • Operating Temperature Range: Rated for operation within -40°C to +60°C continuous temperature range.

  • Connection Type: Straight connection orientation with screw terminals; grounded design complies with NEMA WD-1/WD-6 & ANSI standards.

  • Corrosion Resistant: Exposed materials are UV stabilized as per manufacturer specification;
