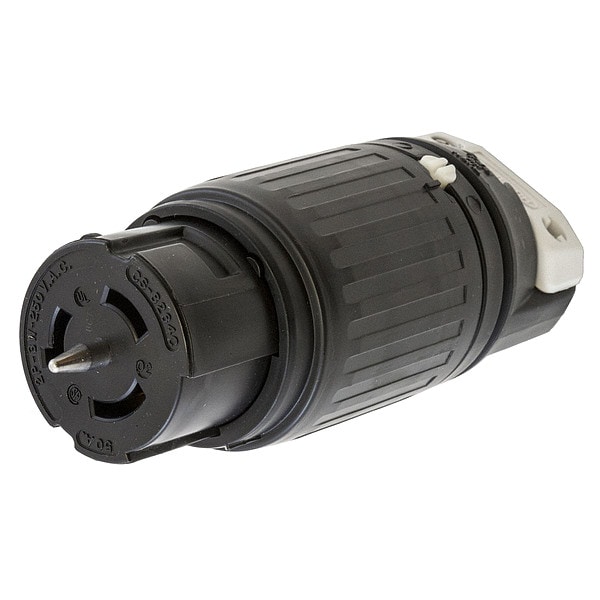

Locking Connector, Non-NEMA, 50 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White
Mfr # CS8264C
Zoro # G2995036
product price: $157.95
/ea
Free Shipping & Returns
Key Features
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CS8264C
Zoro #
G2995036
UPC #
783585828466
Country of Origin
United States
Dimensions
Cord Size
0.750 in to 1.125 in
Overall Length
6.5 in
Outside Diameter
2.563 in
Minimum Wire Size
10 AWG
For Maximum Cable Diameter
1.25 in
Maximum Wire Size
6 AWG
For Minimum Cable Diameter
0.83 in
Wire Size
#10 AWG to #6 AWG
Height
2.50 in
Length
6.50 in
Dimensions
6.50 in x 2.56 in x 2.50 in
Width
2.56 in
Description
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature
