  11. Locking Connector, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

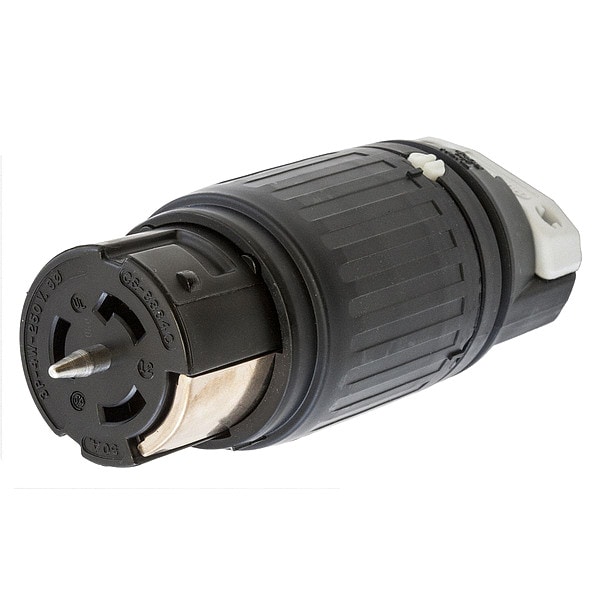

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White CS8364C - main

Locking Connector, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # CS8364C

  • Zoro # G3376335

product price: $167.40
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS8364C
Zoro #
G3376335
UPC #
783585829104
Country of Origin
United States

Dimensions

Cord Size
0.750 in to 1.125 in
Outside Diameter
2.563 in
For Minimum Cable Diameter
0.83 in
Maximum Wire Size
6 AWG
Overall Length
6.5 in
Minimum Wire Size
10 AWG
For Maximum Cable Diameter
1.25 in
Dimensions
6.50 in x 2.56 in x 2.50 in
Height
2.50 in
Width
2.56 in
Wire Size
#10 AWG to #6 AWG
Length
6.50 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant
Material
Super Tough Nylon
IP Rating
IP20
Grade
Industrial
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Black Nylon
Contact Material
Brass
Power Indicating Light
No
For Environment
Dry
For Location
Indoor
UL 94 Flammability Rating
HB
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Midget Locking
No
Weight
1
Flame Resistant
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Amperage Rating
50 A
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
Material - Mounting Hardware
Cord Mounted
Cord Range
.830"-1.250"(21.08-31.75)
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 50A Twist-Lock Connector is a locking connector suitable for use in industrial and commercial electrical applications. It features a nylon housing and an insulated body, for use in indoor dry locations; see specifications for environmental suitability. This connector accommodates three poles and four wires, operates at 250V AC, and supports wire sizes from #10 AWG to #6 AWG stranded copper wire.


Key Features of the HUBBELL 50A Twist-Lock Connector:

  • Amperage/Voltage Rating: Rated for 50 A at 250V AC

  • Poles/Wires: Three-pole, four-wire configuration with grounding

  • Cable Range: Accepts cable diameters from 0.830 in to 1.250 in

  • Body Material: Constructed with black nylon housing

  • Contact Material: Brass contacts used as specified by manufacturer

  • Cord Clamp: Two-piece external cord clamp included

  • Wire Connection Type: Screw terminals accommodate #10 AWG to #6 AWG stranded copper wire only

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use

  • Flame Resistance: Meets UL 94 HB or better flammability rating requirements for connectors; interior is thermoplastic polyester for heat resistance

  • Standards Compliance: Certified to CSA C22.2 No.42; Listed to UL 498 standards
