Shop HUBBELL WIRING DEVICE-KELLEMS

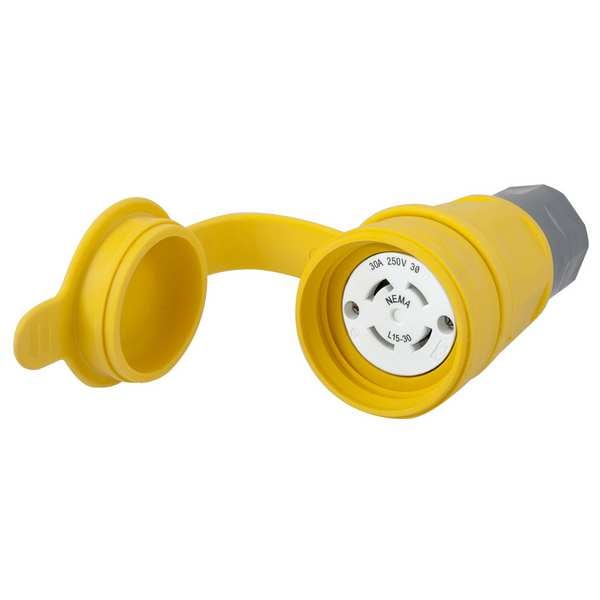

Watertight Locking Connector, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL29W75

  • Zoro # G9990662

product price:
$
164.70
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL29W75
Zoro #
G9990662
UPC #
783585131887
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.375 in to 1.125 in
Outside Diameter
2.77 in
Overall Length
2.77 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Wire Rope Length
2.77 in
Length
2.77 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
IP Rating
IP69K
Material
Thermoplastic Elastomer, Valox
Grade
Industrial/Commercial
Special Features
Corrosion resistant
Body Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Horsepower Rating
3 hp
Market
Industrial
Power Indicating Light
No
Maximum Operating Temperature
140 Degrees F
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
2500V AC
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Operating Temp.
-40 to 60°C
Power Indicator
No
Antimicrobial
No
Power and Ground Indicating Light
No

Description

• Smooth body design minimizes collection points simplifying the wash down process
• Strain relief nut always seals on the body, minimizing debris collection
• Stainless steel hardware and corrosion-resistant connection points
