  11. Locking Plug, L1-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

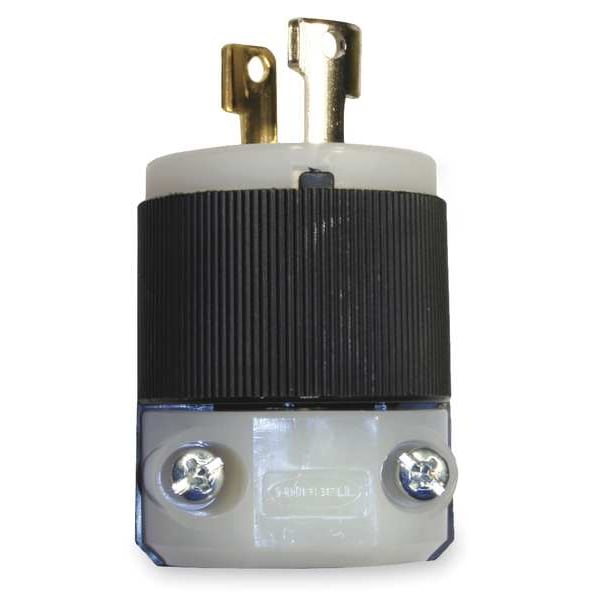

Hubbell Wiring Device-Kellems Locking Plug, L1-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL7545C - main

Locking Plug, L1-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL7545C

  • Zoro # G0385795

product price: $18.89
/ea

Key Features

NEMA Plug Configuration
L1-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Wires
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7545C
Zoro #
G0385795
UPC #
783585178509
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Body Length
1.96 in
Minimum Wire Size
14 AWG
Outside Diameter
1.527 in
Maximum Wire Size
12 AWG
Wire Size
#14 AWG to #12 AWG
Length
1.96 in
Dimensions
1.96 in x 1.52 in x 1.52 in
Width
1.52 in
Height
1.52 in

Details

Item
Locking Plug
NEMA Plug Configuration
L1-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Boot Code
A
Material
Nylon
Application
Industrial/Commercial
For Location
Indoor
For Environment
Dry
Polarized
Yes
Market
Commercial, Industrial
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees C
Housing Material
Composite
Horsepower Rating
1/2 hp
Maximum Operating Temperature
75 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.230"-0.720"(5.8-18.3)
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
15 A
Amps
15
Antimicrobial
No
NEMA Configuration
L1-15P

Description

Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Composite, NEMA Plug Configuration L1-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Industrial, Grounding Non-Grounded
