  11. Wall Switch, 15A, Black, 1 HP, 1-Pole Switch

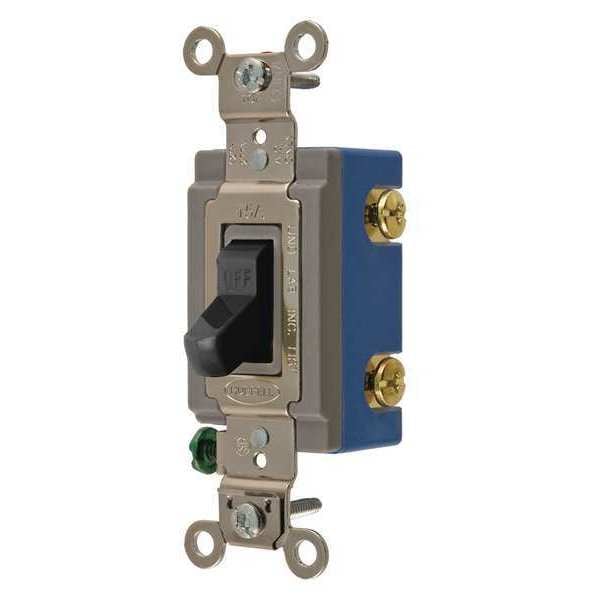

Hubbell Wiring Device-Kellems Wall Switch, 15A, Black, 1 HP, 1-Pole Switch HBL1201BK - main

Wall Switch, 15A, Black, 1 HP, 1-Pole Switch

  • Mfr # HBL1201BK

  • Zoro # G4440171

product price: $18.75
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1201BK
Zoro #
G4440171
UPC #
00783585189024
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Overall Height
1.9 in
Length
4.06 in
Height
1.87 in
Width
1.31 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1
Antimicrobial
No
Standards
UL Listed
Description/Special Features
Quiet Switch
Switch Material
Nylon
Current Rating
15 A
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Horsepower Rating
1 hp
Number of Switches
1
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Screw Terminals
Market
Industrial
Voltage Rating
120/277V AC
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Style
Single Pole
Type
Toggle
Max. Continuous Current
15A
Nylon Switch Plate
NP1BK
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Base Material
Thermoset, Blue
Terminal Screws
Brass
Ground Screw
Brass (Green)
Toggle Material
Nylon
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Contacts
Silver Alloy
Top Material
Thermoset
Toggle Color
Black
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Application
Back and Side Wired
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
15 A
Series
Extra Heavy Duty
Voltage Rating Description
120-277 VAC
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Back and Side Wired
Amperage Rating
15 A
Industry Standard(s)
UL Listed

Description

Wall Switch, Color Black, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
