  11. Locking Plug, L18- 30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

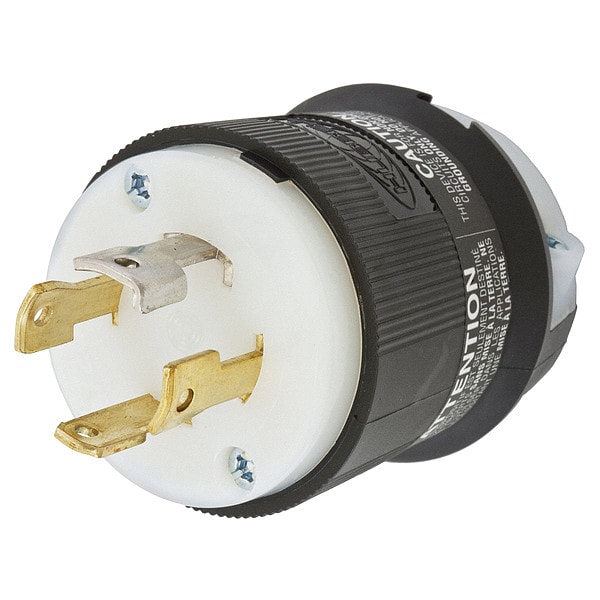

Hubbell Wiring Device-Kellems Locking Plug, L18- 30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2751 - main

Locking Plug, L18- 30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2751

  • Zoro # G0703026

product price: $56.65
/ea

Key Features

Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2751
Zoro #
G0703026
UPC #
783585039435
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Body Length
2.33 in
Face Diameter
2.21 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Height
2.75 in
Dimensions
2.33 in x 2.33 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L18- 30P
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Boot Code
C
Application
Extra Heavy Duty Industrial
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
For Location
Indoor
Market
Industrial
Housing Material
Nylon
Polarized
Yes
Horsepower Rating
2 hp
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
30 A
Cord Range
0.350"-1.150" (9-29)
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Amps
30
Antimicrobial
No

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
