Shop HUBBELL WIRING DEVICE-KELLEMS

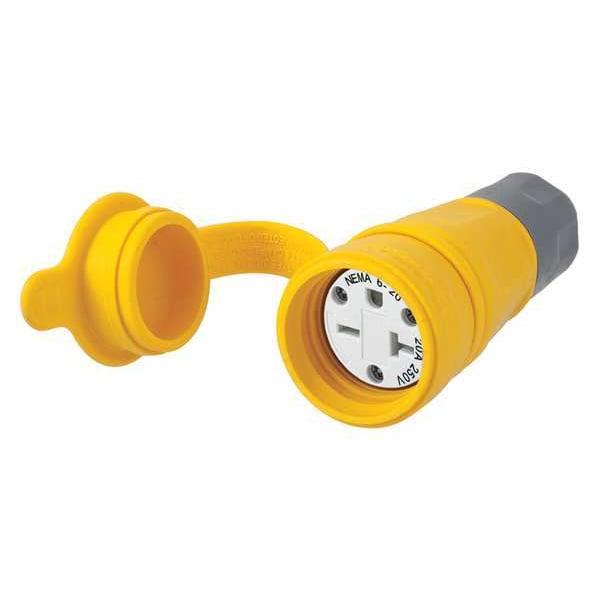

Watertight Straight Blade Connector, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # HBL15W48

  • Zoro # G0074938

product price:  $55.15
/ea

Key Features

NEMA Receptacle Configuration
6-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL15W48
Zoro #
G0074938
UPC #
783585131290
Country of Origin
Multiple

Dimensions

For Maximum Cable Diameter
0.63 in
For Minimum Cable Diameter
0.38 in
Cord Size
0.300 in to 0.625 in

Details

Item
Watertight Straight Blade Connector
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Cap Type
Screw-On Cap
IP Rating
IP69K
Standards
ANSI, CSA Certified, UL Listed, NEMA WD-1, NEMA WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant
Grade - Plugs and Receptacles
Industrial
Power Indicator
No
NEMA Plug Configuration - Plugs and Receptacles
6-20R
Voltage
250VAC
Grade
General Use
Antimicrobial
No
Material
Thermoplastic Elastomer/Valox
Corrosion Resistant
No
NEMA Configuration
6-20
Maximum Operating Temperature
60 Degrees C
Housing Material
Thermoplastic Elastomer
Horsepower Rating
1 hp
Power Indicating Light
No
Polarized
Yes
Insulation Material
Nylon
Contact Material
Nickel-Plated Brass
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees C
Bushing Material
Black Elastomer
Body Material
Thermoplastic Elastomer
Retainer Material
Clear Polycarbonate
Dielectric Strength
2500V AC
Temp. Rise
30°C
UV Resistance
All Exposed Materials are UV Stabilized
Operating Temp.
-40 to 60°C
Series
Watertight Devices

Description

Watertight Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type Press-On Cap, For Maximum Cable Diameter 0.63 in, For Minimum Cable Diameter 0.38 in, Grade General Use, Grounding Grounded, Horsepower Rating 1 hp
