  11. Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

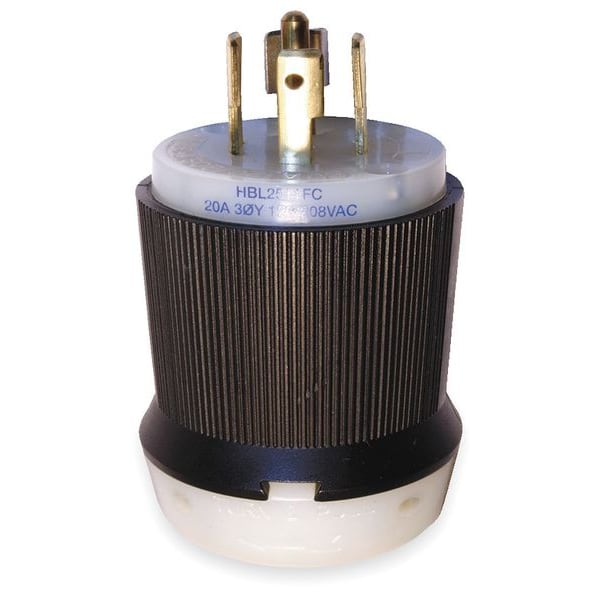

Hubbell Wiring Device-Kellems Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2511FC - main

Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2511FC

  • Zoro # G3387194

product price: $50.29
/ea

Key Features

NEMA Plug Configuration
L21-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2511FC
Zoro #
G3387194
UPC #
783585039992
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Minimum Wire Size
16 AWG
Face Diameter
2.21 in
Body Length
2.75 in
Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.75 in
Dimensions
2.75 in x 2.33 in x 2.33 in
Height
2.33 in
Width
2.33 in

Details

Item
Locking Plug
NEMA Plug Configuration
L21-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Special Features
For Flat Cable
Grade
Industrial
Material
Nylon
Boot Code
C
Application
Extra Heavy Duty Industrial
Polarized
Yes
Housing Material
Nylon
Market
Industrial
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
2 hp
Blade Material
Brass
For Environment
Dry
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.350"-1.150" (9-29)
Cord Type
All Listed Portables
Material - Mounting Hardware
Cord Mounted
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
20 A
Amps
20
Antimicrobial
No
NEMA Configuration
L21-20

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants.
