  11. Locking Plug, L23-20P, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

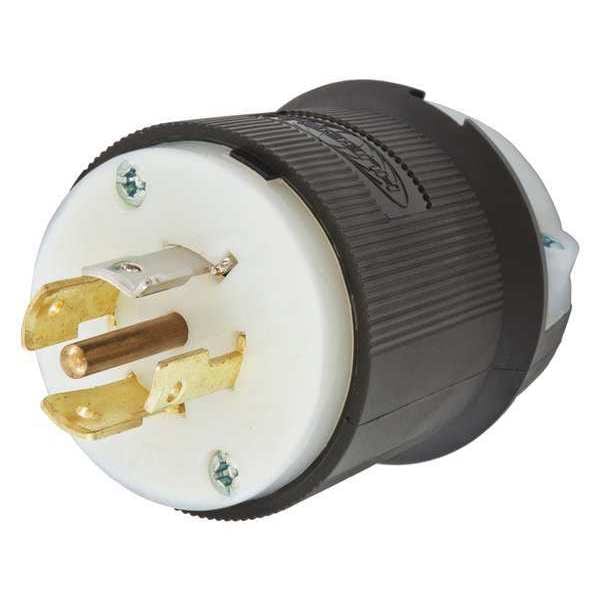

Hubbell Wiring Device-Kellems Locking Plug, L23-20P, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2531 - main

Locking Plug, L23-20P, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2531

  • Zoro # G4440856

product price: $51.95
/ea

Key Features

NEMA Plug Configuration
L23-20P
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2531
Zoro #
G4440856
UPC #
783585038650
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Face Diameter
2.21 in
Body Length
2.33 in
Minimum Wire Size
16 AWG
Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Height
2.75 in
Dimensions
2.33 in x 2.33 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L23-20P
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
For Environment
Dry
Market
Industrial
Polarized
Yes
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Cord Type
All Listed Portables
Amperage Rating
20 A
Material - Mounting Hardware
Cord Mounted
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.350"-1.150" (9-29)
OEM Brand Name
Hubbell Wiring Device-Kellems
Amps
20
Antimicrobial
No

Description

The HUBBELL 20A Locking Plug L23-20P is a four-pole, five-wire industrial-grade plug rated for use in industrial applications where secure electrical connections are required. It features a cord-mounted nylon housing and accommodates cable diameters from 0.35 to 1.15 inches, compatible with listed portable cords intended for dry indoor environments. The plug supports up to 20 amps at 347/600V AC and utilizes screw terminals for wire connection.


Key Features of the HUBBELL - 20A Locking Plug L23-20P:

  • NEMA Configuration: L23-20P, rated for three-phase power at 347/600V AC

  • Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire

  • Cord Grip Design: Is intended to reduce strain on terminations

  • Funnel-Shaped Wire Entry: Assists with wire termination

  • Integral Dust Shield: Is included to limit ingress of dust or contaminants into the wiring chamber

  • Housing Material: nylon

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V; certified current interrupting at full rated current

  • Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596
