Shop HUBBELL WIRING DEVICE-KELLEMS

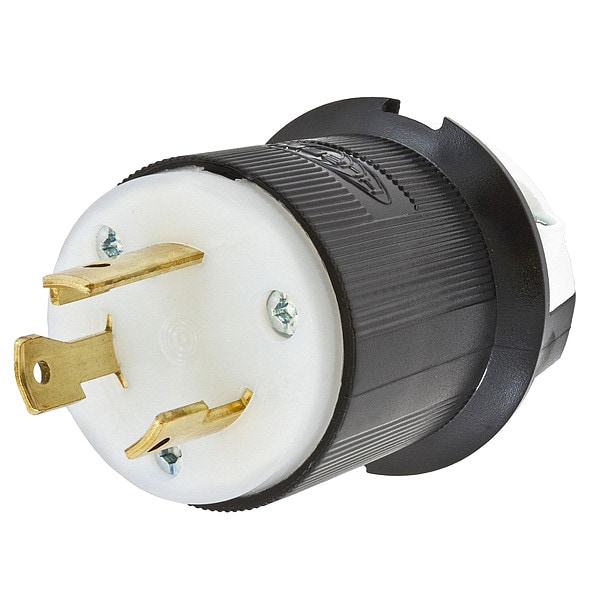

Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2621

  • Zoro # G2364616

product price:  $38.68
/ea

Key Features

NEMA Plug Configuration
L6-30P
Current Rating
30 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2621
Zoro #
G2364616
UPC #
783585038834
Country of Origin
United States

Dimensions

Cord Size
0.360 in to 0.930 in
For Minimum Cable Diameter
0.36 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Face Diameter
1.97 in
For Maximum Cable Diameter
0.93 in
Body Length
2.26 in
Outside Diameter
2.26 in
Length
2.26 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Boot Code
B
Grade
Industrial
Material
Nylon
Blade Material
Brass
Polarized
Yes
For Location
Indoor
Horsepower Rating
2 hp
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
For Environment
Dry
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Amps
30
NEMA Configuration
L6-30
Antimicrobial
No

Description

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
