  11. Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

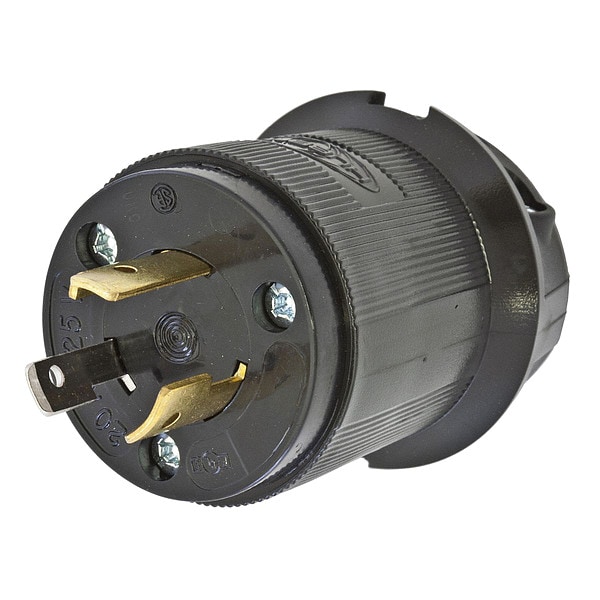

Hubbell Wiring Device-Kellems Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2311BK - main

Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2311BK

  • Zoro # G3440464

product price: $25.55
/ea

Key Features

NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2311BK
Zoro #
G3440464
UPC #
783585172187
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Face Diameter
1.97 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Outside Diameter
2.26 in
Body Length
2.26 in
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Height
2.75 in
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
B
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Blade Material
Brass
For Location
Indoor
Horsepower Rating
1 hp
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
For Environment
Dry
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Material - Mounting Hardware
Cord Mounted
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Listed Portables
Cord Range
0.360"-0.930" (9-24)
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
20
Antimicrobial
No

Description

• All black ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
