Shop HUBBELL WIRING DEVICE-KELLEMS

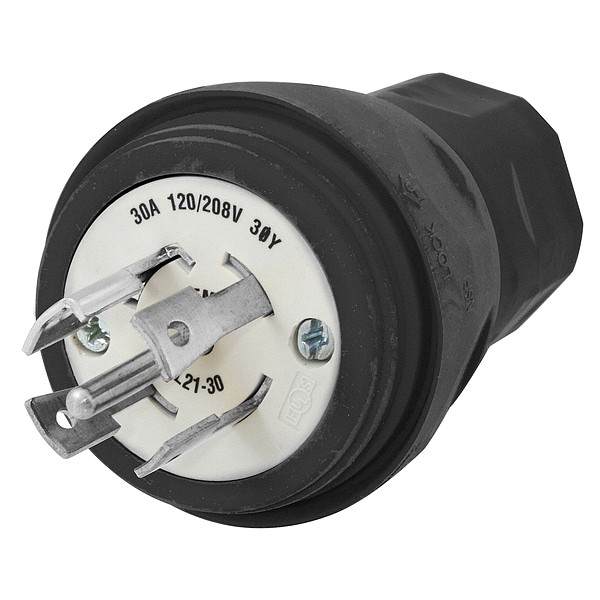

Watertight Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

  • Mfr # HBL28W81BK
  • Zoro # G0069651
product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL28W81BK
Zoro #
G0069651
UPC #
783585131764
Country of Origin
Multiple

Dimensions

Cord Size
0.325 in to 0.875 in
For Minimum Cable Diameter
0.375 in
Outside Diameter
2.77 in
For Maximum Cable Diameter
1 in
Body Length
2.77 in
Length
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Dimensions
2.77 in x 2.77 in x 3.94 in
Width
2.77 in
Height
3.94 in
Maximum Wire Size
8 AWG
Overall Length
2.77 in
Minimum Wire Size
18 AWG
Wire Rope Length
2.77 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L21-30P
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Material
Thermoplastic Elastomer, Valox
Special Features
Moisture, Dust and Weather Resistant
Grade
Industrial
IP Rating
IP69K
Blade Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Market
Industrial
Horsepower Rating
3 hp
Contact Material
Nickel Plated Brass
Dielectric Strength
2500V AC
Bushing Material
Black Elastomer
Body Material
Thermoplastic Elastomer
Retainer Material
Clear Polycarbonate
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Amperage Rating
30 A
Antimicrobial
No
Amps
30

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L21-30P, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
