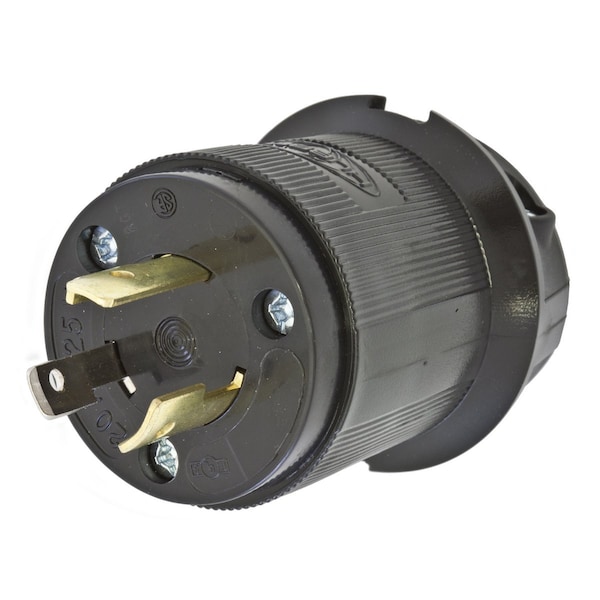

Hubbell Wiring Device-Kellems Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2311EBK - main

Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2311EBK

  • Zoro # G200701773

product price:  $24.98
/ea

Key Features

NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2311EBK
Zoro #
G200701773
UPC #
783585040905
Country of Origin
United States

Dimensions

Cord Size
.360"-.930"
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Height
2.75 in
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 2.75 in
For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
Green), Terminals identified in accordance with UL 498 (X, UL/CSA, White, Y, Z
Resistance Properties
Moisture Resistance
Application
Extra Heavy Duty Industrial
IP Rating
IP20
Material
Nylon
Blade Material
Brass
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Material - Mounting Hardware
Cord Mounted
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.360"-0.930" (9-24)
Cord Type
All Listed Portables
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 20A 125V, 2-Pole 3-Wire Grounding, L5-20P, Screw Terminal,Black, Cord Inserts
