  11. Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

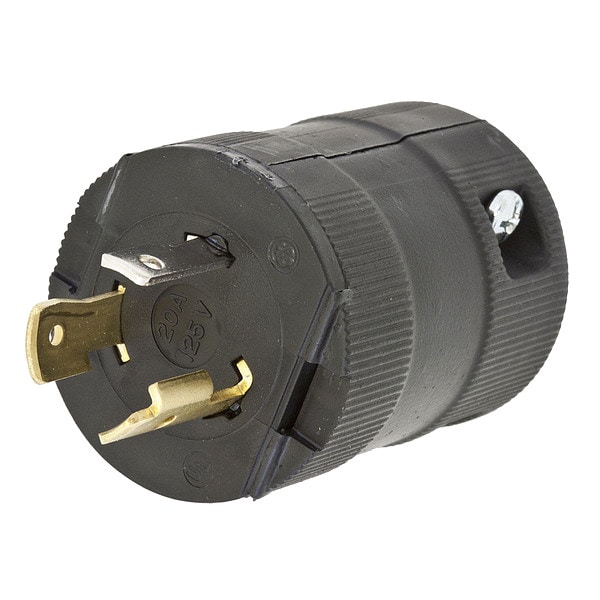

Hubbell Wiring Device-Kellems Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2311VBK - main

Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2311VBK

  • Zoro # G2625971

product price: $15.99
/ea

Key Features

NEMA Plug Configuration
L5-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2311VBK
Zoro #
G2625971
UPC #
783585043005
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.325 in
Cord Size
0.360 in to 0.930 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Body Length
1.78 in
Face Diameter
1.781 in
Wire Size
#18 AWG to #10 AWG
Length
1.78 in
Width
1.78 in
Dimensions
1.78 in x 1.78 in x 2.50 in
Height
2.50 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
For Location
Indoor
Horsepower Rating
1 hp
Market
Industrial
For Environment
Dry
Polarized
Yes
Blade Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.325"-0.720"(8.26-18.3)
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Antimicrobial
No
Amps
20

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Face Diameter 1.781 in, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.325 in, Grade Industrial, Grounding Grounded
