  11. Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

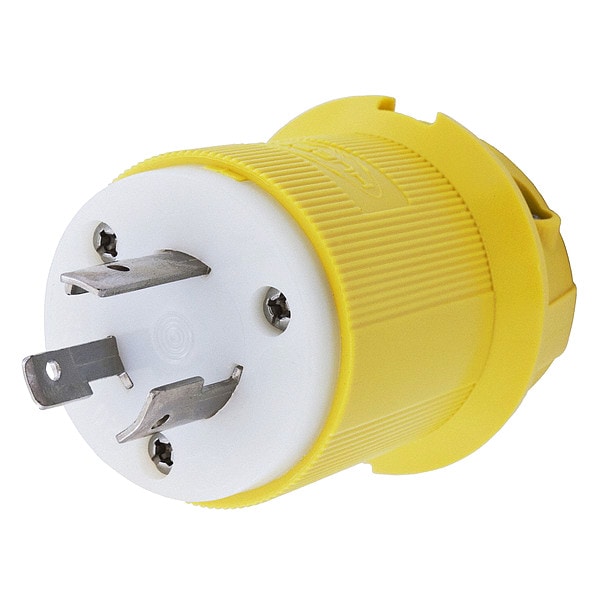

Hubbell Wiring Device-Kellems Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL23CM11 - main

Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL23CM11

  • Zoro # G3120731

product price: $27.19
/ea

Key Features

NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL23CM11
Zoro #
G3120731
UPC #
783585038094
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Outside Diameter
2.26 in
Body Length
2.26 in
Face Diameter
1.97 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Height
2.75 in
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Special Features
Corrosion resistant
Material
Nylon
Boot Code
B
Grade
Marine
Application
Extra Heavy Duty Industrial
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
For Location
Indoor
For Environment
Dry
Blade Material
Brass
Horsepower Rating
1 hp
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Amperage Rating
20 A
Cord Type
All Listed Portables
Cord Range
0.360"-0.930" (9-24)
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
20
Antimicrobial
No

Description

The HUBBELL 20A Marine Twist-Lock Plug (L5-20P) is a locking plug suitable for use in industrial and marine environments. It features a ribbed nylon housing for enhanced grip, impact resistance, and chemical resistance. The plug accommodates cord sizes from 0.360 to 0.930 inches and uses nickel-plated brass blades for reliable electrical connections at 125V AC with a current rating of 20 amps.


Key Features of the HUBBELL - 20A Marine Twist-Lock Plug L5-20P:

  • Housing Material: Ribbed nylon housing

  • Cord Range: Accepts cable diameters from 0.360 in to 0.930 in; compatible with listed portable cords.

  • Blade Material: Nickel-plated brass blades support consistent conductivity.

  • Cord Grip Design: Intended to reduce strain on terminations during use.

  • Integral Dust Shield: Helps prevent dust or contaminants from entering the wiring chamber.

  • NEMA Configuration: L5-20P; rated for single-phase, grounded operation at 125V AC/20A.

  • Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire via screw terminals.

  • Resistance Properties: Construction includes corrosion-resistant, impact-resistant, and chemical-resistant materials
    • .
