Shop HUBBELL WIRING DEVICE-KELLEMS

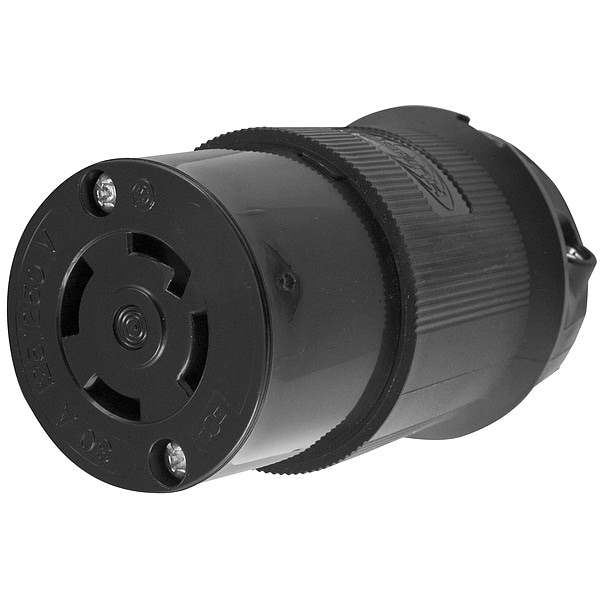

Locking Connector, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL2713BK

  • Zoro # G1627342

product price:  $105.71
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2713BK
Zoro #
G1627342
UPC #
783585172330
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Minimum Wire Size
16 AWG
For Maximum Cable Diameter
1.15 in
Overall Length
2.33 in
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
Outside Diameter
2.33 in
Width
2.33 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Height
3.86 in
Wire Rope Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified C22.2 No.42, Fed.Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Boot Code
C
Grade
Industrial/Commercial
IP Rating
IP20
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
For Location
Indoor
Horsepower Rating
2 hp
Midget Locking
No
Market
Industrial
UL 94 Flammability Rating
HB
Power Indicating Light
No
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
2,000V minimum
Weight
0.6
Amperage Rating
30 A
Cord Range
0.350"-1.150" (9-29)
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Moisture Resistance - IP20 Suitability
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Power Indicator
No
Antimicrobial
No
Power and Ground Indicating Light
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L14-30R, Number of Poles 3, Number of Wires 4, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 1.15 in
