  11. Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

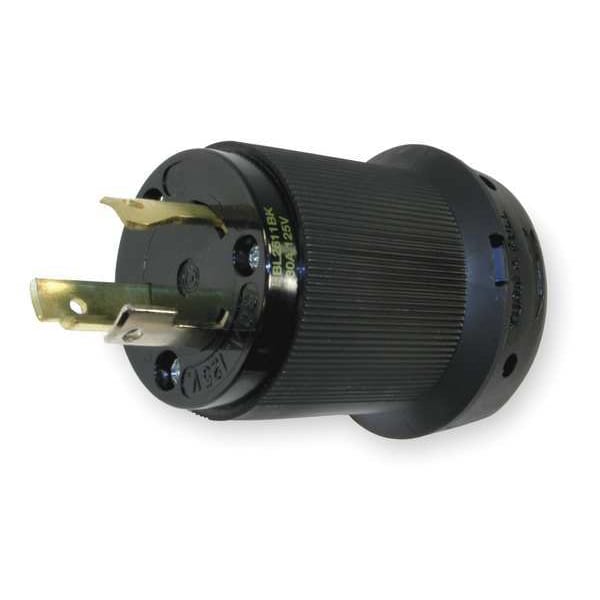

Hubbell Wiring Device-Kellems Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2611BK - main

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2611BK

  • Zoro # G0417286

product price: $40.39
/ea

Key Features

NEMA Plug Configuration
L5-30P
Current Rating
30 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2611BK
Zoro #
G0417286
UPC #
783585172200
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Minimum Wire Size
16 AWG
Outside Diameter
2.26 in
Face Diameter
1.97 in
Maximum Wire Size
8 AWG
Body Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
Dimensions
2.26 in x 2.26 in x 2.75 in
Width
2.26 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
B
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Blade Material
Brass
For Environment
Dry
Polarized
Yes
Horsepower Rating
2 hp
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
For Location
Indoor
Market
Industrial
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Range
0.360"-0.930" (9-24)
Cord Type
All Listed Portables
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
30 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Amps
30
Antimicrobial
No
NEMA Configuration
L5-30

Description

The HUBBELL 30A Locking Plug L5-30P is an electrical plug rated for use in demanding environments. It features a locking mechanism that secures the connection and accommodates 2 poles and 3 wires, rated for 30 amps at 125V AC. The plug includes a clear, funnel-shaped wire entry to facilitate wiring and an integral dust shield that helps protect the internal chamber from contaminants.


Key Features of the HUBBELL - 30A Locking Plug L5-30P:

  • Amperage/Voltage: Rated for 30 A, 125V AC

  • NEMA Configuration: L5-30P (locking type)

  • Cord Range: Accepts cables from 0.360" to 0.930" diameter (#16 AWG to #8 AWG stranded copper wire)

  • Wire Connection Type: Screw terminals with clear entry design

  • Material: Nylon housing; brass blades

  • Resistance Properties: Rated as chemical resistant and impact resistant

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use

  • Standards Compliance: UL 498 listed, CSA C22.2 No.42 certified, Federal Specification W-C-596

  • Ingress Protection Rating: IP20 (indoor dry locations unless otherwise protected)
