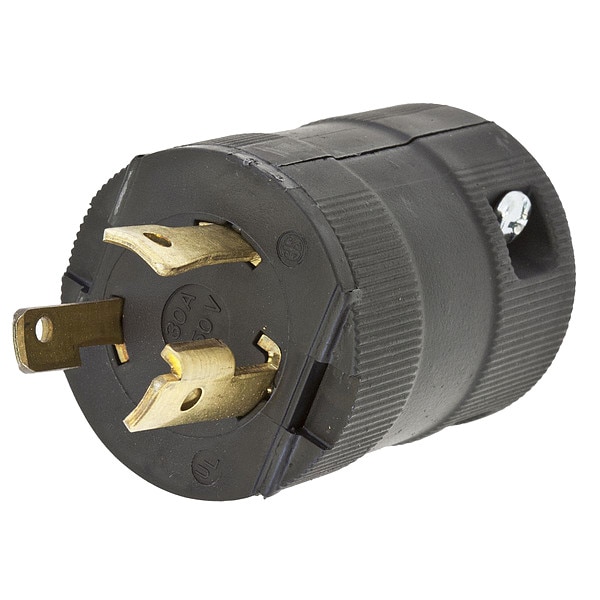

Hubbell Wiring Device-Kellems Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2621VBK - main

Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2621VBK

  • Zoro # G1483063

product price:  $21.85
/ea

Key Features

NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2621VBK
Zoro #
G1483063
UPC #
783585043166
Country of Origin
United States

Dimensions

Cord Size
0.590 in to 0.930 in
Body Length
2.5 in
Minimum Wire Size
14 AWG
For Minimum Cable Diameter
0.59 in
Maximum Wire Size
8 AWG
For Maximum Cable Diameter
0.93 in
Face Diameter
1.781 in
Length
2.5 in
Wire Size
#14 AWG to #8 AWG
Height
1.78 in
Width
1.78 in
Dimensions
2.5 in x 1.78 in x 1.78 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
IP Rating
IP20
Application
Extra Heavy Duty Industrial
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Market
Industrial
Horsepower Rating
2 hp
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
For Location
Indoor
Blade Material
Brass
Housing Material
Nylon
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Material - Mounting Hardware
Cord Mounted
Cord Range
0.590"-0.930" (15.0-23.6)
Performance
Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
30 A
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Listed Portables
Amps
30
Antimicrobial
No

Description

• Powerful cord grip prevents conductor slippage and strain on wiring terminals
• Totally insulated impact and crush resistant nylon body
• Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
