  11. Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black

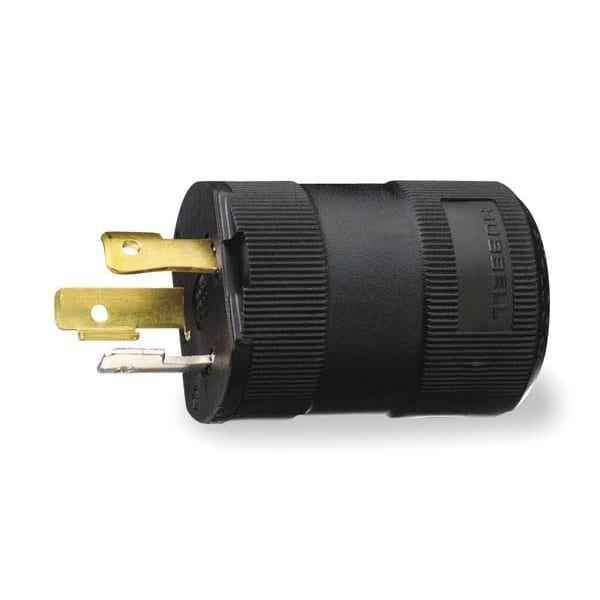

Hubbell Wiring Device-Kellems Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL4773VBK - main

Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL4773VBK

  • Zoro # G0420034

product price: $14.69
/ea

Key Features

NEMA Plug Configuration
L7-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4773VBK
Zoro #
G0420034
UPC #
783585043302
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Outside Diameter
1.49 in
Body Length
1.5 in
Minimum Wire Size
18 AWG
Face Diameter
1.5 in
Maximum Wire Size
12 AWG
Length
1.50 in
Wire Size
#18 AWG to #12 AWG
Dimensions
1.50 in x 1.50 in x 1.87 in
Width
1.50 in
Height
1.87 in

Details

Item
Locking Plug
NEMA Plug Configuration
L7-15P
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Blade Material
Brass
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Polarized
Yes
Horsepower Rating
2 hp
Housing Material
Nylon
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
15 A
Material - Mounting Hardware
Cord Mounted
Cord Range
0.220"-0.660"(5.6-16.8)
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #12 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Type
All Listed Portables
Amps
15
Antimicrobial
No

Description

The HUBBELL 15A Locking Plug L7-15P is a locking electrical plug suitable for use in industrial environments. It features a nylon housing that is rated to withstand specified impacts, with cord grips that are intended to secure conductors and help manage strain on wiring terminals. This plug accommodates cable diameters from 0.220 to 0.660 inches and supports wire sizes ranging from #18 AWG to #12 AWG stranded copper wire.


Key Features of the HUBBELL 15A Locking Plug L7-15P:

  • Amperage/Voltage Rating: Rated for 15 A at 277V AC, single phase

  • NEMA Configuration: L7-15P (2-pole, 3-wire, grounded)

  • Body Material: Nylon housing is rated for chemical exposure and impact according to manufacturer specifications

  • Cord Range: Accepts all listed portable cords within the range of 0.220"–0.660"

  • Wire Connection Type: Screw terminals with hinged wiring style

  • Dielectric Strength: Rated dielectric strength: minimum 2,000V

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Maximum Horsepower Rating: 2 hp

  • Standards Compliance: Certified to CSA C22.2 No.42; UL Listed under UL498; Federal Specification W-C-596

  • IP Rating: IP20 – suitable for indoor dry locations unless protected by additional means
