  11. Locking Plug, L7-20P, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black

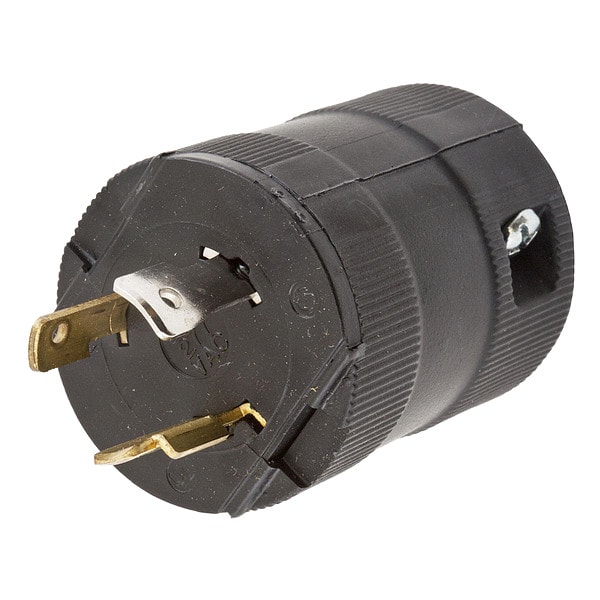

Hubbell Wiring Device-Kellems Locking Plug, L7-20P, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2331VBK - main

Locking Plug, L7-20P, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2331VBK

  • Zoro # G1344244

product price: $15.99
/ea

Key Features

NEMA Plug Configuration
L7-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2331VBK
Zoro #
G1344244
UPC #
783585043081
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.325 in
Cord Size
0.360 in to 0.930 in
Minimum Wire Size
18 AWG
Body Length
1.78 in
Face Diameter
1.781 in
Maximum Wire Size
10 AWG
Wire Size
#18 AWG to #10 AWG
Length
1.78 in
Width
1.78 in
Height
2.50 in
Dimensions
1.78 in x 1.78 in x 2.50 in

Details

Item
Locking Plug
NEMA Plug Configuration
L7-20P
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Blade Material
Brass
Market
Industrial
For Environment
Dry
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
2 hp
Polarized
Yes
Housing Material
Nylon
For Location
Indoor
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.325"-0.720"(8.26-18.3)
Performance
Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
Amps
20
Antimicrobial
No
NEMA Configuration
L7-20

Description

• Powerful cord grip prevents conductor slippage and strain on wiring terminals
• Totally insulated impact and crush resistant nylon body
• Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
