  11. Locking Plug, L8-30P, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

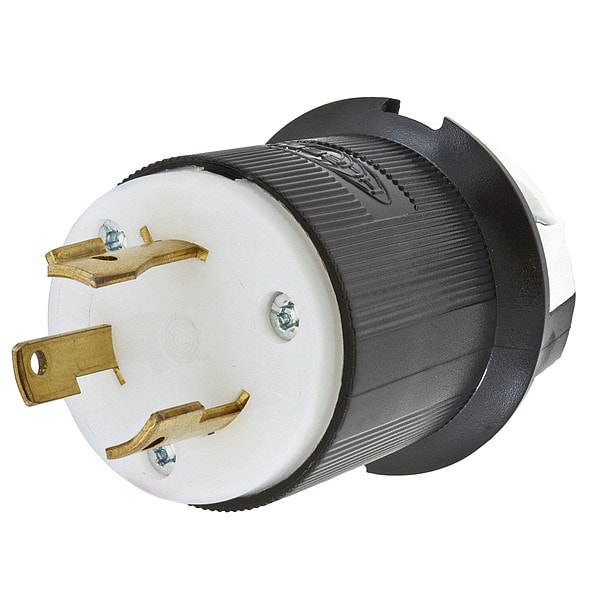

Hubbell Wiring Device-Kellems Locking Plug, L8-30P, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2641 - main

Locking Plug, L8-30P, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2641

  • Zoro # G0562922

product price: $41.69
/ea

Key Features

NEMA Plug Configuration
L8-30P
Current Rating
30 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2641
Zoro #
G0562922
UPC #
783585039008
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.325 in
Cord Size
0.360 in to 0.930 in
Outside Diameter
2.26 in
Maximum Wire Size
8 AWG
Face Diameter
1.97 in
Body Length
2.26 in
Minimum Wire Size
16 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
Height
2.75 in
Dimensions
2.26 in x 2.26 in x 2.75 in
Width
2.26 in

Details

Item
Locking Plug
NEMA Plug Configuration
L8-30P
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Boot Code
B
Application
Extra Heavy Duty Industrial
Blade Material
Brass
Horsepower Rating
5 hp
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
For Location
Indoor
Market
Industrial
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Material - Mounting Hardware
Cord Mounted
Cord Range
0.325"-0.930"
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Antimicrobial
No
Amps
30

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L8-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.97 in, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.325 in, Grade Industrial, Grounding Grounded
