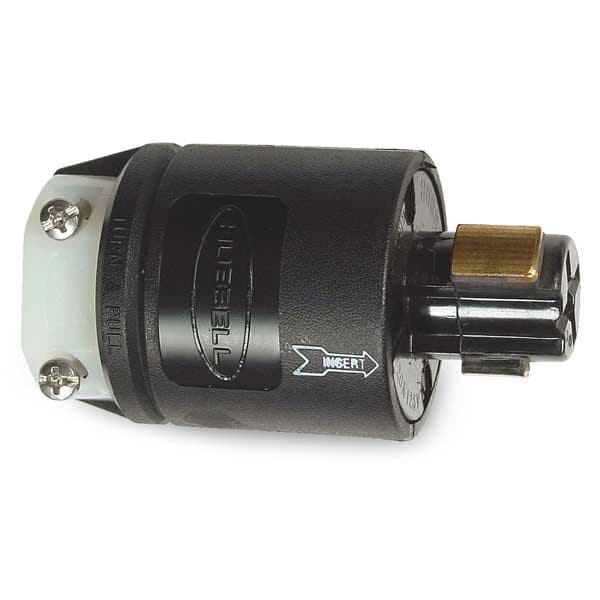

Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL23035B

  • Zoro # G0727632


product price: $169.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL23035B
Zoro #
G0727632
UPC #
783585017440
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.32 in
Cord Size
0.300 in to 0.650 in
Outside Diameter
1.72 in
Body Length
1.72 in
Length
1.72 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP30
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Maximum Operating Temperature
75 Degrees C
Blade Material
Brass
Polarized
Yes
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amps
20
NEMA Configuration
Non-NEMA, 3 Blade
Antimicrobial
No

Description

The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
