  11. Locking Plug, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

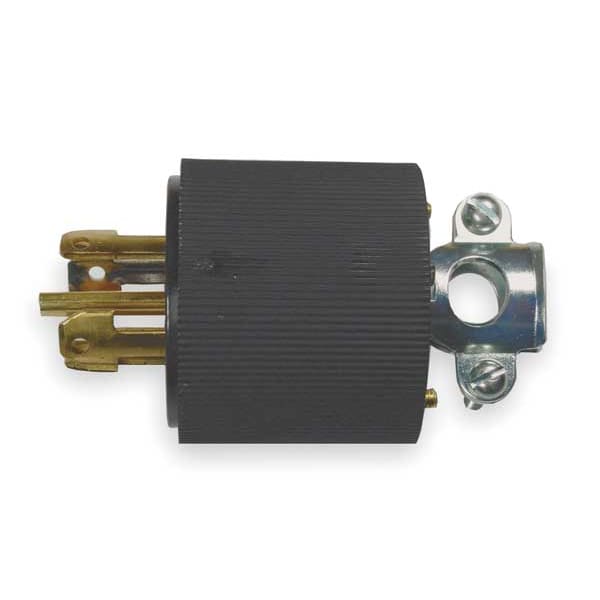

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black HBL45915 - main

Locking Plug, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

  • Mfr # HBL45915

  • Zoro # G1940994

product price: $122.65
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL45915
Zoro #
G1940994
UPC #
783585238104
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.000 in
Face Diameter
2.13 in
Body Length
2.13 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Length
2.13 in
Wire Size
#14 AWG to #10 AWG
Dimensions
2.13 in x 2.13 in x 3.79 in
Height
3.79 in
Width
2.13 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Heavy Duty Industrial
Polarized
Yes
Maximum Operating Temperature
75 Degrees C
Blade Material
Brass
For Environment
Dry
Market
Industrial
For Location
Indoor
Minimum Operating Temperature
-40 Degrees C
Housing Material
Composite
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Range
0.625"-1.00"
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
Cord Type
All Listed Portables
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Configuration
Non-NEMA, 5 Blade
Amps
20
Antimicrobial
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Composite, NEMA Plug Configuration Non-NEMA, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.13 in, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.625 in, Grade Industrial, Grounding Grounded
