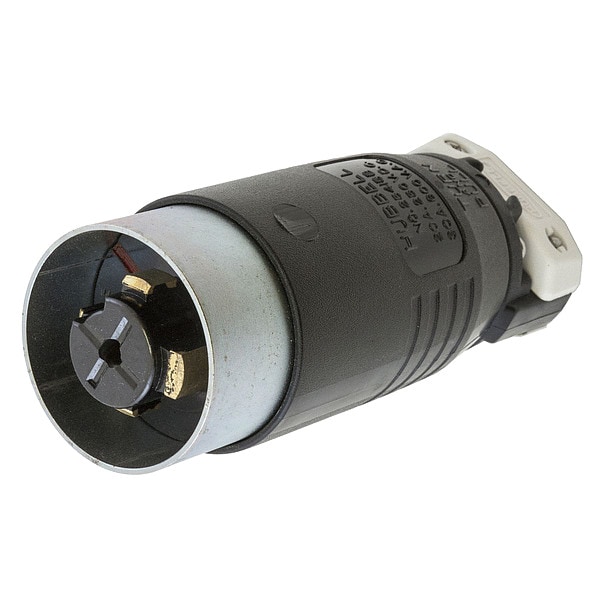

Locking Plug, Non-NEMA, 20/30 A, 250/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White
Mfr # HBL25415B
Zoro # G0687215
product price: $266.99
/ea
Free Shipping & Returns
Key Features
NEMA Plug Configuration
Non-NEMA
Current Rating
20/30 A
Voltage Rating
250/600V AC
Phase
Three
Number of Poles
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL25415B
Zoro #
G0687215
UPC #
783585017488
Country of Origin
United States
Dimensions
For Maximum Cable Diameter
1.20 in
For Minimum Cable Diameter
0.70 in
Cord Size
0.630 in to 1.200 in
Maximum Wire Size
6 AWG
Body Length
2.5 in
Minimum Wire Size
10 AWG
Outside Diameter
2.23 in
Wire Size
#10 AWG to #6 AWG
Length
2.5 in
Width
2.5 in
Height
6.56 in
Dimensions
2.5 in x 2.5 in x 6.56 in
Description
The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.
• Molded-in male contacts are resistant to damage and provide a consistently positive connection
• Insulated non-metallic housing enhances safety and abuse resistance
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
• Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
• Molded-in male contacts are resistant to damage and provide a consistently positive connection
• Insulated non-metallic housing enhances safety and abuse resistance
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
• Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
