  11. Locking Plug, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

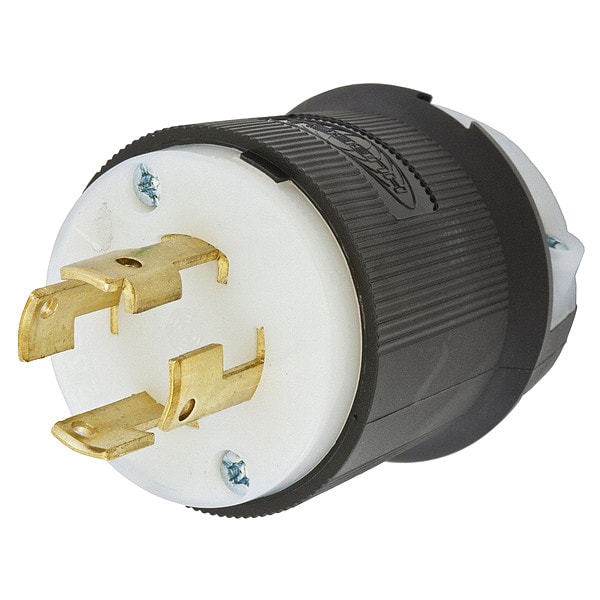

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL3431GCB - main

Locking Plug, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL3431GCB

  • Zoro # G1467496

product price: $64.40
/ea

Key Features

Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3431GCB
Zoro #
G1467496
UPC #
783585039886
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in
Face Diameter
2.21 in
Body Length
2.33 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Height
2.75 in
Dimensions
2.33 in x 2.33 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
For Location
Indoor
Blade Material
Brass
For Environment
Dry
Housing Material
Nylon
Polarized
Yes
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating
30 A
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.350"-1.150" (9-29)
Antimicrobial
No
NEMA Configuration
Non-NEMA, 4 Blade
Amps
30

Description

The HUBBELL 30A Twist-Lock Plug is a locking plug rated for use in industrial applications where a secure electrical connection is required. It features a ribbed nylon housing.


Key Features of the HUBBELL 30A Twist-Lock Plug:

  • Amperage/Voltage: Rated for 30 A at 250V AC with three poles and four wires

  • Housing Material: Ribbed nylon construction provides impact and chemical resistance

  • Cord Accommodation: Accepts cable diameters from 0.350 in to 1.150 in; compatible with listed portable cords within specified cable diameter range

  • Cord Grip Design: Cord grip design intended to reduce strain on wire terminations

  • Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire using screw terminals

  • Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed

  • NEMA Configuration: Non-NEMA twist-lock design with polarized connection orientation

  • Ingress Protection & Flammability Rating: IP20 suitability; HB or better per UL94/CSA standards
