Shop HUBBELL WIRING DEVICE-KELLEMS

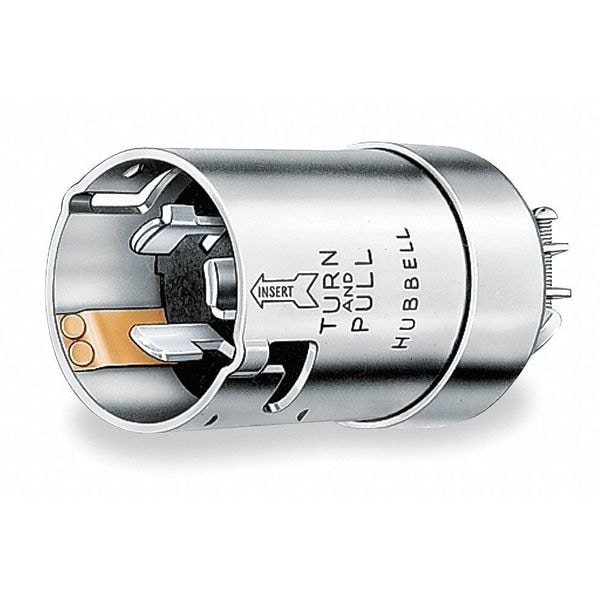

Locking Plug, Non-NEMA, 50 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Silver

  • Mfr # HBL63CM61
  • Zoro # G1669491
product price:
$
147.15
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL63CM61
Zoro #
G1669491
UPC #
783585808710
Country of Origin
United States

Dimensions

Cord Size
0.437 in to 1.140 in
Maximum Wire Size
6 AWG
For Minimum Cable Diameter
0.437 in
For Maximum Cable Diameter
1.14 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Silver
Standards
UL Listed
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
IP Rating
IP20
Special Features
Corrosion resistant
Material
Nickel Plated Brass
Grade
Marine
For Environment
Dry
For Location
Indoor
Polarized
Yes
Housing Material
Composite
NEMA Configuration
Non-NEMA, 3 Blade
Amps
50
Antimicrobial
No

Description

The HUBBELL 50A Marine Twist-Lock Plug is a locking plug designed for indoor, dry locations where a secure electrical connection is required. It features a nickel plated brass shell and contacts for durability and alignment. This plug accommodates cord sizes from 0.437 in to 1.140 in, supports up to 6 AWG wire size, and is rated for single-phase operation at 125V AC with a current rating of 50 amps.


Key Features of the HUBBELL 50A Marine Twist-Lock Plug:

  • Corrosion Resistant: Nickel plated brass components feature nickel plated brass components for durability in specified environments.

  • Chemical and Impact Resistance: Constructed with materials rated for chemical exposure and physical impact as specified by manufacturer.

  • Marine Grade: Suitable for marine environments requiring robust construction.

  • Screw Terminals: Standard wiring style allows straightforward wire connections using screw terminals.

  • Shrouded Design: Features a shrouded design around the connection points.

  • NEMA Configuration: Non-NEMA configuration with two poles and three wires; polarized for proper alignment during use.

  • Grounded Connection: Includes grounding feature as required by applicable standards.

  • UL Listed: Meets UL listing requirements for performance verification.
