Shop HUBBELL WIRING DEVICE-KELLEMS

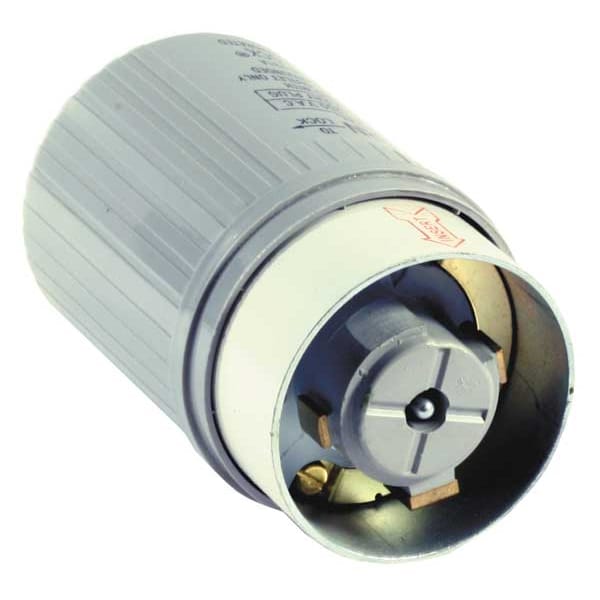

Locking Plug, Non-NEMA, 50 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Gray

  • Mfr # HBL25525

  • Zoro # G2941897

product price:
$
703.35
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL25525
Zoro #
G2941897
UPC #
783585016061
Country of Origin
United States

Dimensions

Cord Size
0.830 in to 1.300 in
Face Diameter
3.03 in
Outside Diameter
3.03 in
For Minimum Cable Diameter
0.83 in
Maximum Wire Size
4 AWG
For Maximum Cable Diameter
1.30 in
Body Length
4.81 in
Minimum Wire Size
8 AWG

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Hospital Grade
IP Rating
IP30
Material
Steel/Lexan
Carton Quantity
5
Housing Material
Steel/Lexan
Polarized
Yes
Amps
50
Antimicrobial
No
NEMA Configuration
Non-NEMA, 3 Blade

Description

The HUBBELL 50A Hospital Locking Plug is a single-phase, 2-pole, 3-wire device rated for 250V AC and intended for use in hospital-grade electrical systems. It features a locking mechanism to maintain secure connections and is constructed with a steel/Lexan housing for impact and chemical resistance. The plug includes screw terminals for wire connection and accommodates cord sizes from 0.830 in to 1.300 in diameter.


Key Features of the HUBBELL - 50A Hospital Locking Plug:

  • Current/Voltage Rating: Rated for 50 A at 250V AC

  • Grade: Hospital Grade construction suitable for healthcare environments

  • Housing Material: Steel/Lexan body provides impact and chemical resistance

  • Cord Size Compatibility: Accepts cable diameters from 0.83 in to 1.30 in

  • Wire Connection Type: Screw terminals support up to maximum wire size of 8 AWG

  • NEMA Configuration: Non-NEMA locking design with polarized, shrouded contacts

  • Number of Poles/Wires/Blades: Two poles, three wires, three blades; grounded configuration

  • Connection Orientation: Straight entry wiring style

  • IP Rating: IP30 protection against solid objects greater than or equal to 2.5 mm

  • Standards Compliance: CSA Certified, UL Listed
