Shop PASS & SEYMOUR

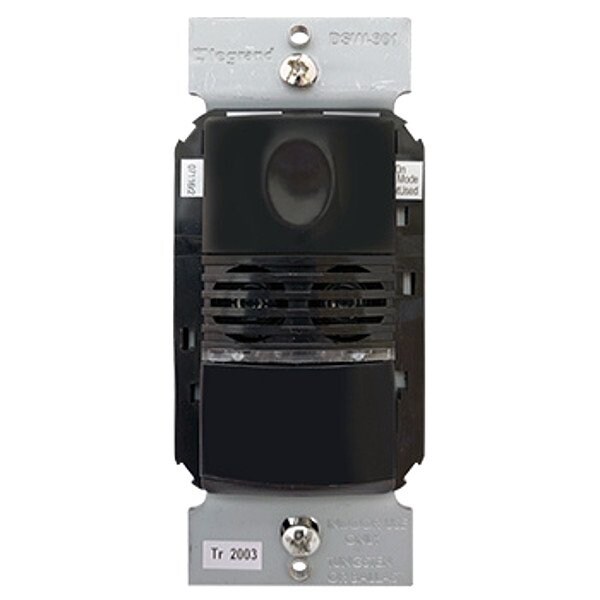

Wall Switch, Black, 0.1875 hp

  • Mfr # DSW-301-B

  • Zoro # G616332769

product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Lighting Technology
LED
Includes
Mounting Screw
Number of Buttons
1
Standards
cULus Listed, NEMA WD-1, NEMA WD-6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DSW-301-B
Zoro #
G616332769
UPC #
754182935390
Country of Origin
China
Item
Wall Switch
Color
Black
Lighting Technology
LED
Includes
Mounting Screw
Number of Buttons
1
Standards
cULus Listed, NEMA WD-1, NEMA WD-6
Maximum Operating Temperature
131 Degrees F
Includes Wall Plate
Wall Plate Included
Neutral Required
No
Horsepower Rating
3/16 hp
Load Rating @ 120V AC
1,000 W (Ballast)
Coverage Angle
180 Degrees
Minimum Coverage Area
400 sq ft
Series
DSW-301
Sensor Operation
Occupancy
Minimum Time Delay
30 sec
Operating Voltage
120 V AC; 277 V AC
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Nightlight
No
Maximum Detection Distance
35 ft
Installation Location
Wall
Maximum Coverage Area
1,050 sq ft
Load Rating @ 277V AC
1,200 W (Ballast)
Minimum Operating Temperature
32 Degrees F
Manufacturer Warranty
5 yr.
Includes Motion Sensor
Yes
Maximum Time Delay
30 min
Time Delay Adjustment Method
Manual
Rated Frequency
50/60 Hz

Description

Wall Switch, Number of Buttons 1, Sensor Operation Occupancy, Lighting Technology LED, Operating Voltage 120 V AC; 277 V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,000 W (Ballast), Maximum Coverage Area 1,050 sq ft, Neutral Required No, Color Black, Nightlight No, Includes Wall Plate Wall Plate Included, Series DSW-301, Coverage Angle 180 Degrees , Installation Location Wall, Includes Mounting Screw, Standards cULus Listed, NEMA WD-1, NEMA WD-6
