Shop HUBBELL WIRING DEVICE-KELLEMS

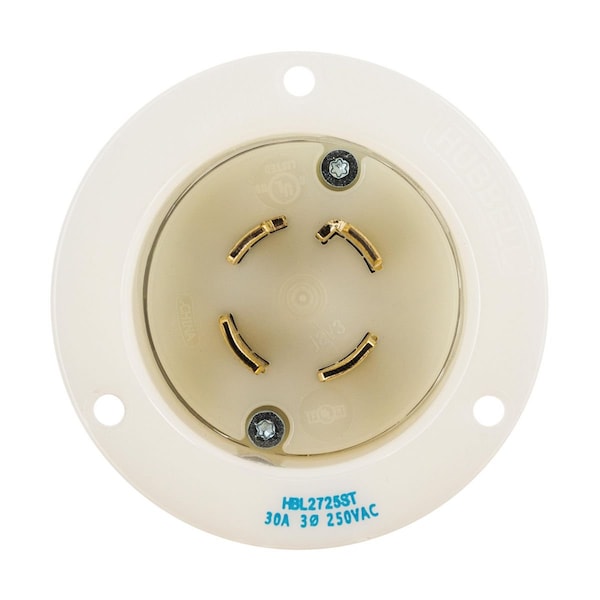

Locking Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Spring Clamp Terminals, White

  • Mfr # HBL2725ST

  • Zoro # G306171326


product price:
$
64.80
/ea

Key Features

NEMA Receptacle Configuration
L15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2725ST
Zoro #
G306171326
UPC #
783585681665
Country of Origin
China
Item
Locking Plug
NEMA Receptacle Configuration
L15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Grade
Federal Specification
For Location
Indoor
Market
Industrial
Housing Material
Nylon
Horsepower Rating
3 hp
Number of Blades
4
NEMA Plug Configuration
L15-30P
Includes
14 AWG - 8 AWG Copper Wire
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Housing Material Finish
Natural
Shrouded
No
NEMA Configuration
L15-30
UL 94 Flammability Rating
HB
Blade Material
Copper Alloy

Description

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination
• Backwired termination for ease of installation
